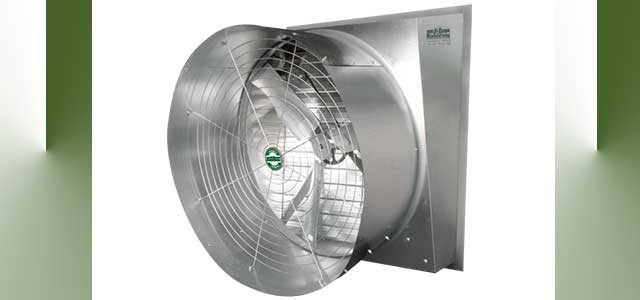

Slant Wall Exhaust Fan
Slant Wall exhaust fan series is the most robust galvanized fan on the market today. The heavy duty 18 gauge galvanized housing and venturi are the perfect support structure for the 12 gauge motor mount. All fans come with aluminum shutters on the intake side, with tie bars and poly shutter clips that hold the shutter tight to the frame for less vibration. With a quick twist of the poly clips, the shutters can be removed for easy cleaning. Our cone models include a safety cone guard. Models without a cone include a 12 gauge 1" x 2" mesh guard that is hot dip galvanized after welding. Our Typhoon fans are designed for exceptional performance, low maintenance and low operating cost.
- Available in 24”, 30”, 36”, 48” and 50”Typhoon Wall Exhaust Fan
- Heavy duty 18 gauge galvanized housing
- Smooth spun venturi to maximize airflow
- Rugged X-frame motor mount for stability and quiet operation
- Available with or without a performance boosting cone
- No cone models include a 1” x 2” wire mesh guard that is hot dip galvanized after weld
- Cone models include a hot dip galvanized safety cone guard
- Optional ½” x 1” guard available to mount on the intake side to meet OSHA requirements
- Ships fully assembled except shutter and/or cone
- Plastic guard clips to reduce noise and vibration
- 3, 4, or 6 bladed galvanized propeller
- 50” models available with a 3 blade cast aluminum prop with a Lifetime Warranty
- Spring belt tensioner on 48” and 50” belt drive models
- Two speed motors available on select models (requires separate speed control)
- Shaft bearings are pre-lubricated, permanently sealed and rubber mounted with an eccentric locking double set screw collar for smooth operation.
- Totally enclosed, maintenance free, high efficiency motors have completely sealed ball bearings and are covered by a Two Year Warranty
