An Analysis of Advanced Controlled-Environment Agriculture (CEA) System

Diagram of a Nutrient Film Technique (NFT) hydroponic channel showing thin nutrient solution film, laminar flow direction, and roots exposed to oxygen.

Controlled‑Environment Agriculture (CEA) combines hydroponics, precise environmental automation, and optimized lighting to maximize yield, quality, and resource efficiency. This guide translates key scientific principles—VPD, PAR/PPFD, root‑zone oxygenation—into practical decisions for commercial growers, researchers, and advanced hobbyists.

An Analysis of Advanced Controlled‑Environment Agriculture (CEA) Systems

Optimizing plant physiology for maximized yield and efficiency

The Shift from Simple Protection to Precision CEA

The modern greenhouse has evolved from a passive solar structure for season extension into a dynamic, data‑driven bioreactor. Precision control over environmental variables is now the primary lever for influencing plant phenotype, accelerating growth cycles, and maximizing resource‑use efficiency. This article provides a technical analysis of key advancements in controlled‑environment agriculture systems, focusing on the scientific principles that underpin their effectiveness.

System Architecture: NFT channels maintain vs. True Soilless Cultivation (Commercial Hydroponic Growing Systems)

A fundamental choice in CEA design is between substrate‑based culture (e.g., rockwool, coco coir) and authentic liquid‑based soilless culture, such as Nutrient Film Technique (NFT) or Deep Water Culture (DWC).

Scientific Deep Dive: Nutrient Film Technique (NFT) Hydraulics

The efficacy of NFT hinges on fluid dynamics and root‑zone gas exchange. A laminar film of nutrient solution is maintained over bare roots, providing continuous access to water, macro/micronutrients, and—critically—dissolved oxygen.

High oxygen availability in the rhizosphere prevents hypoxic stress that diminishes root respiration and active uptake of ions such as phosphorus (P) and potassium (K). This makes NFT ideal for low‑density, fast‑growing leafy greens and herbs with relatively shallow root systems.

Schematic of an NFT channel showing thin nutrient film, flow direction, and root exposure to oxygen.
NFT channels maintain a thin, oxygen‑rich film along the root zone.
Engineered for Precision

For research and commercial applications that demand repeatability, our engineered high‑performance NFT and recirculating systems are designed for optimal flow rates, minimal channel deformation, and sanitary operation to reduce pathogen pressure.

Get a spec & quote

Practical takeaways
  • Best fit: NFT excels for lettuce, basil, and other quick‑turn crops where oxygenation drives uptake and growth rate.
  • Key variable: Maintain consistent film depth and flow velocity to balance nutrient delivery with oxygen exposure.
  • When to choose substrate: Heavier crops or long cycles (e.g., tomatoes) may benefit from substrate buffering and root anchorage.

Automation & Environmental Control: Managing Vapor Pressure Deficit (VPD) in Greenhouses

The core of modern CEA is maintaining environmental variables within narrow, crop‑specific setpoints via integrated climate computers and sensor networks.

Scientific Deep Dive: Why VPD Outperforms RH

While relative humidity (RH) is a familiar metric, vapor pressure deficit (VPD) is the true driver of transpiration. Defined as the difference between the moisture the air can hold at saturation and the moisture it currently has, VPD (kPa) directly modulates stomatal aperture and hence mass flow of water and nutrients.

Incorrect VPD can trigger edema, tip burn, and stunted growth. Modern controllers compute VPD from temperature and RH using psychrometric equations and then orchestrate ventilation, heating, dehumidification, and misting to hit target setpoints.

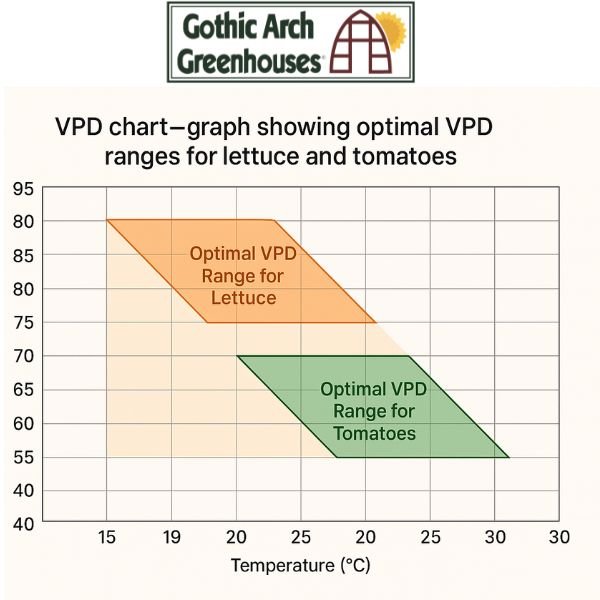

Chart showing the relationship among temperature, relative humidity, and VPD with optimal zones for lettuce and tomatoes.
Optimal VPD ranges vary by crop and phenological stage.
“VPD—not RH—is the actionable control variable for consistent transpiration and nutrient flow.”
Integrated Control Solutions

Consistency yields consistency. Our automated environmental control integrations dynamically coordinate fans, vents, heat, and misting to maintain target VPD for your crop and stage.

Talk to a CEA specialist.

Practical takeaways
  • Start with targets: Define crop‑ and stage‑specific VPD setpoints (e.g., leafy greens vs. fruiting crops).
  • Close the loop: Use reliable sensors (temp/RH) and automate ventilation, heat, and dehumidification to track VPD.
  • Log data: Trend VPD vs. yield/quality for continuous optimization.

Greenhouse Lighting Optimization: PAR, PPFD & Photomorphogenesis

Light provides energy for photosynthesis and serves as a signal for morphological changes (photomorphogenesis).

PAR (Photosynthetically Active Radiation): spectral band 400–700 nm used in photosynthesis. PPFD (Photosynthetic Photon Flux Density): μmol/m²/s striking the canopy per second—your critical intensity metric.

Spectral cues influence architecture: blue light (400–500 nm) promotes stomatal opening and compact growth, while red light (600–700 nm) is highly efficient for photosynthesis. Far-red light (700–800 nm), via the phytochrome system, drives shade avoidance, internode elongation, and can influence flowering timing.

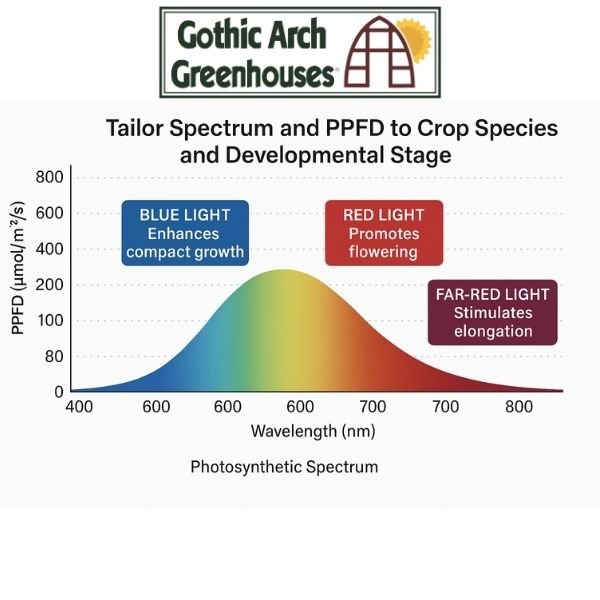

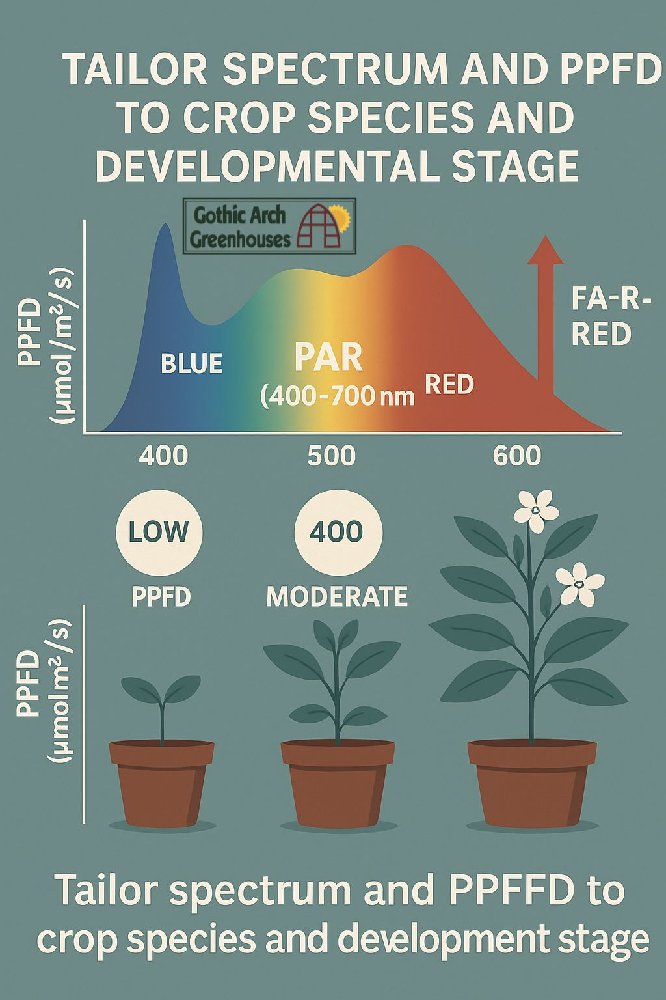

Spectrum diagram highlighting PAR (400–700 nm), blue, red, and far‑red regions and their primary plant responses.
Tailor spectrum and PPFD to crop species and developmental stage.
Lighting Plans That Pay Back

We design lighting layouts to specified PPFD/DLI and crop outcomes. Inquire about spectrum mixes for greens versus fruiting crops and how to integrate them with daylight dimming.

Request a lighting layout.

Practical takeaways
  • Measure, don’t guess: Use a quantum sensor to verify PPFD at canopy height.
  • Design to DLI: Back‑solve supplemental hours from target daily light integral (DLI) and daylight availability.
  • Spectrum is a tool: Use blue for compactness, red for photosynthesis, and far‑red strategically for elongation/flowering cues.

Resource Use Efficiency: Water, Nutrients & Energy

Closed‑loop recirculating hydroponic systems reduce evapotranspirative loss and can achieve water‑use efficiencies above 90% compared to open‑field production. Precision monitoring of EC and pH allows targeted adjustments that minimize fertilizer runoff and mitigate nitrogen/phosphorus pollution.

Diagram of a closed‑loop hydroponic system showing reservoir, dosing, irrigation, root zone, and return flow for recirculation.
Closed-loop fertigation enables precise control of inputs and minimizes waste.
From Data to Decisions

Integrate dosing control, EC/pH monitoring, and alarms to protect crop quality and reduce input costs. Discover our commercial growing systems, designed for auditability and scalability.

Schedule a system review.

Practical takeaways
  • Water: Recirculate and track losses; capture and sanitize return flows.
  • Nutrients: Manage EC/pH by crop and stage; log changes in solution composition.
  • Energy: Coordinate temp, dehumidification, and lighting to reduce redundant loads.

Putting It Together: Integrated Controlled‑Environment Agriculture Systems

Peak productivity and efficiency emerge from the integration of soilless culture, environmental control, and light management—each tailored to the specific needs of crop physiology and business objectives.

Specify Your System

Ready to formalize your design? We’ll map crop requirements to hydroponic architecture, environmental controls, and lighting to deliver measurable outcomes.

Explore commercial systems. Request a proposal.

Glossary (Quick Reference)

PAR / PPFD

PAR: 400–700 nm photosynthetically active spectrum. PPFD: photon flux density (μmol/m²/s) at canopy—use to set lighting intensity.

VPD (Vapor Pressure Deficit)

Air’s drying power (kPa) derived from temperature and RH—the actionable control variable for transpiration and nutrient mass flow.

EC / pH

EC: electrical conductivity proxy for nutrient concentration. pH: acidity/alkalinity influencing nutrient availability and uptake.

NFT (Nutrient Film Technique)

Soilless method using a thin moving film of nutrient solution over exposed roots to maximize oxygenation and controlled feeding.

© 2025 Gothic Arch Greenhouses | Providing Innovative Growing Solutions Since 1946

Contact Us · Our Blog.

Deep Water Culture (DWC) Advanced for Hydroponics
Deep Water Culture (DWC) is a high-performance hydroponic method where plant roots are suspended in a nutrient-rich, oxygenated water solution. Advanced DWC systems incorporate precision environmental controls, scientific nutrient management, and enhanced oxygen delivery to achieve faster growth rates and higher yields than traditional soil cultivation.
Deep Water Culture (DWC) Advanced for Hydroponics: Top 17 Expert-Level Tips
Deep Water Culture (DWC) hydroponics has taken a leap from traditional hobby setups to high-performance growing systems capable of feeding both families and industries. For seasoned growers looking to improve yield, nutrient uptake, and plant health, advancing your DWC system is a natural next step.

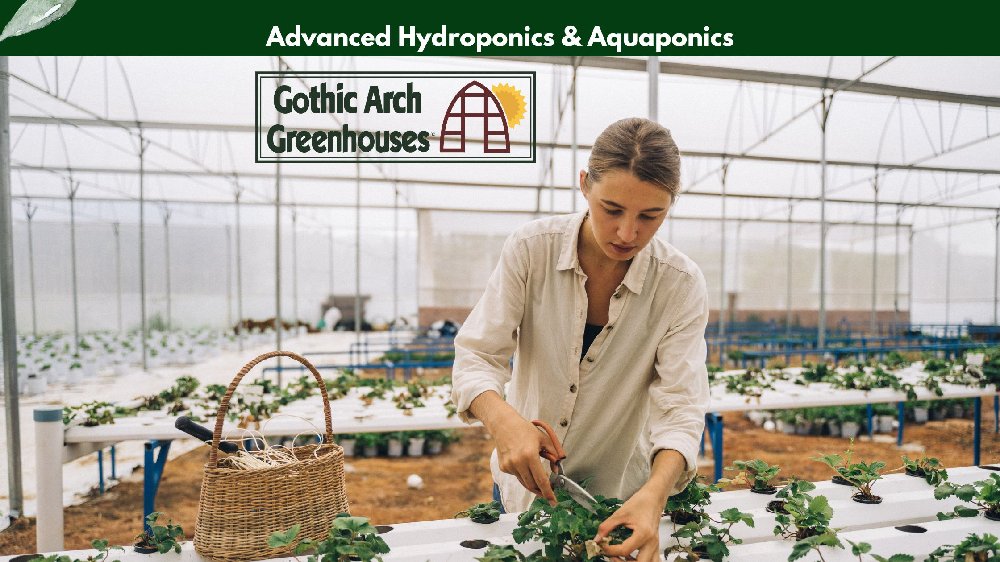

Advanced Hydroponics & Aquaponics: Mastering Future Farming Techniques
Soilless farming is no longer a futuristic idea—it's happening now, and it's transforming how we grow food. Advanced hydroponics & aquaponics are two of the most powerful innovations in modern agriculture. While they may sound technical, the concept is simple: grow plants using water, nutrients, and innovative design—without soil

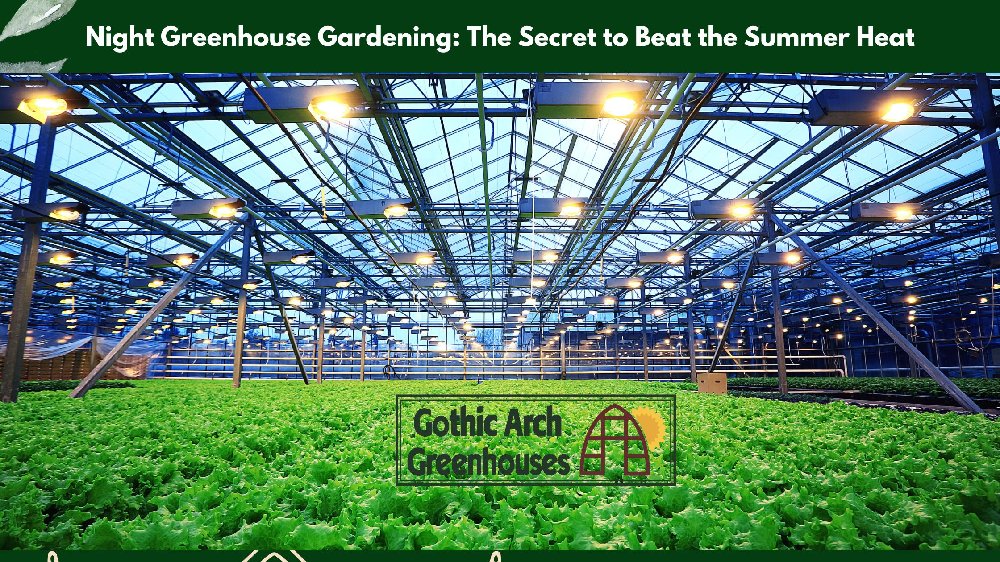

Night Greenhouse Gardening: The Secret to Beat the Summer Heat
Night greenhouse gardening is the practice of managing and nurturing plants during the cooler nighttime hours inside a greenhouse. Unlike traditional daytime gardening, this method uses the natural drop in temperature at night to create an optimal environment for plant growth, especially during hot summer months.
Ghost Pepper Summer: Growing Superhot in Your Greenhouse
In recent years, superhot peppers like the infamous ghost pepper have captured the fascination of spice enthusiasts, gardeners, and culinary adventurers alike. With Scoville ratings exceeding 1,000,000 SHU (Scoville Heat Units), these fiery fruits are no longer just novelties—they’re now staples in artisanal hot sauces, gourmet dishes, and even natural pest repellents. The greenhouse growing trend has further fueled their popularity, offering a controlled environment to produce healthier plants and even hotter pods. This article is your step-by-step guide to mastering ghost pepper greenhouse growing—from seed to scorching harvest.
Vertical Farming Integration: The Future of Sustainable Agriculture
Vertical farming represents a revolutionary method of growing crops in vertically stacked layers, often integrated into urban structures like warehouses or skyscrapers. As urbanization accelerates and arable land becomes scarce, the integration of vertical farming into modern agricultural systems is becoming increasingly crucial. This article explores the strategic fusion of vertical farming with existing infrastructure, smart cities, and renewable technologies to address global food security and sustainability goals.
Best Summer Crops for Greenhouses: Scientifically Proven Top Picks for Maximum Yield
Greenhouse gardening offers a controlled and efficient environment for growing crops during the summer, allowing for extended growing seasons and protection from external weather fluctuations. By choosing the right crops that are scientifically suited for greenhouse conditions, growers can significantly improve yields and reduce pest and disease risks.
How to Keep Your Greenhouse Cool Without Spending a Fortune
Maintaining an optimal temperature in your greenhouse is crucial for plant health and productivity. However, cooling your greenhouse can often become expensive, especially during the peak summer months. This guide provides evidence-based, budget-friendly strategies to keep your greenhouse cool without spending a fortune. You can effectively manage heat stress and boost plant resilience by integrating natural ventilation, affordable shading, water-based cooling methods, and some helpful resources from Gothic Arch Greenhouses.

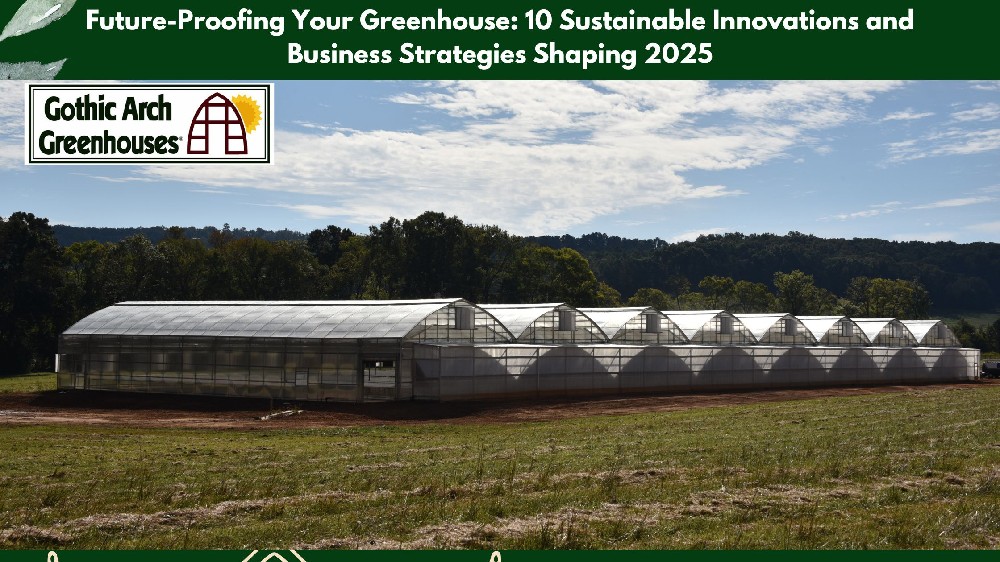

Future-Proofing Your Greenhouse: 10 Sustainable Innovations and Business Strategies Shaping 2025
