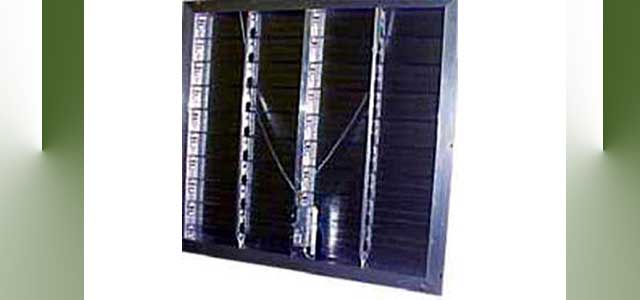

LRW All-Aluminum Shutters

The LRW Shutter fans is all aluminum, extruded aluminum frame with inter-locking aluminum blades for maximum weather seal. Double panel shutters (LRW39 thru LRW57) constructed with rigid "" section member to prevent shutter blades from sticking .The LRW Shutter has nylon bearings on all movable linkage. Sturdy, extruded aluminum tie-bar is connected exactly on centers of blades, dual tie-bar is connected exactly on centers of blades, dual tie-bars (one for each section) on double panel units. The LRW Shutter is gravity of motor operated.

Back

Options
Pricing
Specifications
Support
Accessories

Options

16", 21" , 27", 33" ,39", 42" ,45", 51" ,57",

Pricing

Model #	Description	Price
A03-LRW-16E	16"	273
A03-LRW-21E	21"	$294
A03-LRW-27E	27"	$326
A03-LRW-33E	33"	$371
A03-LRW-39E	39"	$480
A03-LRW-45E	45"	$538
A03-LRW-51E	51"	$609
A03-LRW-57E	57"	$703
A03-LRW-4515E	45" x 15"	$501
A03-LRW-4527E	45" x 27"	$611
A03-LRW-6015E	60" x 15"	$473
A03-LRW-6024E	60" x 24"	$591
A03-LRW-6036E	60" x 36"	$743

Specifications

Model #	--	Rough-in Dim.:	Voltage:/th>
LRW-16E	--	19.25" x 19.25"	115
LRW-21E	--	24.25" x 24.25"	115
LRW-21E	--	30.25" x 30.25" h	115
LRW-33E	--	36.25" x 36.25"	115
LRW-39E	--	42.25" x 42.25"	115
LRW-45E	--	48.25" x 48.25"	115
LRW-51E	--	54.25" x 54.25"	115
LRW-57E	--	60.25" x 60.25"	115

Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

T115 Thermostat Thermostat - One Speed / Heat or Cool / 120V / 16 Amp

$75

S01-SM-1530 Shutter Motor 0.5 amps at 115 volts; 0.25 amps at 230 volts

$75
