Cold Frame

Greenhouse Cold Frames

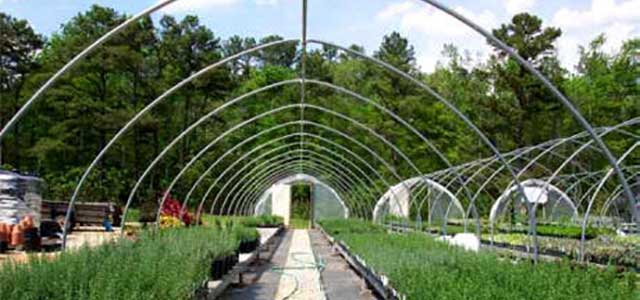

Cold frames come complete with anchors, bows, 1 purlin*, corner bracing, and hardware. Our 18’, 20’, 22’, 28’ and 30’ bows are 1-5/8” tubing. Smaller sizes (12’, 14’, and 16’) are 1-3/8” tubing. Film, film Klip, or any operating equipment is sold separately. *For cold frames 20’ and larger 3 purlins are provided Please call 1-800-251-531-4769 if you need a larger size.

Back to cold frame Page

Options
Pricing
Specifications
Support
Accessories

Options

18’ W, 20’W, 22’W, 28’W and 30’W

12’W, 14’W, and 16' W

Pricing

Stock#	Frame Size	Bow Spacing	Snow Load	Price	Buy Now
J02-FSCF 1215	12' x 15'	5'	38 lbs	$--	Call to Order
J02-FSCF 1230	12' x 30'	5'	38 lbs	$--	Call to Order

J02-FSCF 1445	14' x 45'	5'	31 lbs	--	Call to Order
J02-FSCF 1448	14' x 48'	6'	25 lbs	--	Call to Order
J02-FSCF 1495	14' x 95'	5'	31 lbs		Call to Order
J02-FSCF 1496	14' x 96'	6'	25 lbs		Call to Order

J02-5FSCF 1645	16' x 45'	5'	34 lbs		Call to Order
J02-6FSCF 1648	16' x 48'	6'	29 lbs		Call to Order
J02-5FSCF 1695	16' x 95'	5'	34 lbs		Call to Order
J02-6FSCF 1696	16' x 96'	6'	29 lbs		Call to Order

J02-5FSCF 2245	22' x 45'	5'	31 lbs		Call to Order
J02-4FSCF 2248	22' x 48'	4'	38 lbs		Call to Order
J02-6FSCF 2295	22' x 48'	6'	31 lbs		Call to Order
J02-5FSCF 2296	22' x 95'	5'	31 lbs		Call to Order
J02-4FSCF 2296	22' x 96'	4'	38 lbs		Call to Order
J02-6FSCF 2296	22' x 96'	6'	26 lbs		Call to Order

J02-5FSCF 2445	24' x 45'	5'	25 lbs		Call to Order
J02-4FSCF 2448	24' x 48'	4'	31 lbs		Call to Order
J02-6FSCF 2448	24' x 48'	6'	21 lbs		Call to Order
J02-5FSCF 2495	24' x 95'	5'	25 lbs		Call to Order
J02-4FSCF 2496	24' x 96'	4'	31 lbs		Call to Order
J02-6FSCF 2496	24' x 96'	6'	21 lbs		Call to Order

J02-5FSCF 2845	28' x 45'	5'	16 lbs		Call to Order
J02-4FSCF 2848	28' x 48'	4'	20 lbs		Call to Order
J02-6FSCF 2848	28' x 48'	6'	13 lbs		Call to Order
J02-5FSCF 2895	28' x 95'	5'	20 lbs		Call to Order
J02-4FSCF 2896	28' x 96'	4'	25 lbs		Call to Order
J02-6FSCF 2896	28' x 96'	6'	17 lbs		Call to Order

J02-5FSCF 3045	30' x 45'	5'	16 lbs		Call to Order
J02-4FSCF 3048	30' x 48'	4'	20 lbs	$--	Call to Order
J02-6FSCF 3048	30' x 48'	6'	13 lbs	$--	Call to Order
J02-5FSCF 3095	30' x 95'	5'	16 lbs	--	Call to Order
J02-4FSCF 3096	30' x 96'	4'	20 lbs	$--	Call to Order
J02-6FSCF 3096	30' x 96'	6'	13 lbs	$--	Call to Order

Specifications

1 purlin*, corner bracing, and hardware for 12'W 14'W 18' W.
20’ and larger 3 purlins are provided
18’, 20’, 22’, 28’ and 30’ bows are 1-5/8” tubing.
Smaller sizes (12’, 14’, and 16’) are 1-3/8” tubing.
Film, film Klip, or any operating equipment is sold separately.
Support

Installation Tips:
- Prepare soil well. It should be smooth and pliable.
- Do not lay paper on dry soil. Beds should be firm.
- To prevent tearing, adjust wheels on plastic laying machine so that they do not stretch the paper.
- Reduce speed of tractor when laying paper.
- Paper is more fragile than plastic; therefore when making holes through the paper with a bulb setter, a quick, sharp jab reduces tearing. Also, when the paper is in contact with a firm, flat soil surface, there is less risk of tearing at planting.
- Do not walk on the paper.
If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

Recommended Accessories

Poly Film: Choose from 1-year or 4-year, 6mil poly covering. Available in clear or white.
Call for volume purchases.

>> More information

Poly Patch Tape: Poly Patch is the leading film repair tape in America. A complete first-aid kit for greenhouses, this easy-to-use patching tape bonds aggressively to polyethylene film.

Call for volume purchases.

Wiggle Wire™ poly attachment system: Used on thousands of greenhouses, Wiggle Wire has proven to be a low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

Galvanized End Frame Packages: Optional galvanized end frame kit speeds set up and eliminates the need for any lumber. Heavy-duty swinging door includes 8mm clear polycarbonate sheeting.

Galvanized End Frame Package
Galvanized end frame with door: 14' (3' x 6'-8") 16', 18' or 20' (4' x 6'-8")
