Steam Generators

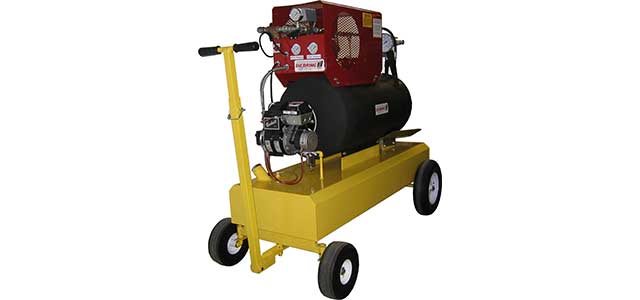

SG12 STEAM GENERATOR
- 400 lbs. steam per hour
- 2.0 – 2.25 gallon #2 fuel per hour
- 45 PSI - Ultra dry steam
- Fuel pressure gauge
- 8" chimney adapter
- 120 V power supply
- 20 gallon fuel tank
- 180 ft. heating coil
- Internal steam separator
- Steam trap
- 12' electrical cord
- Treats up to 2 cu. yards of soil in approx 2 hours
SG15 STEAM GENERATOR
- 500 lbs. steam per hour
- 2.50 gallon #2 fuel per hour
- 60 PSI - Ultra dry steam
- Fuel pressure gauge
- 8" chimney adapter
- 120 V power supply
- 42 gallon fuel tank
- 220 ft. heating coil
- Internal steam separator
- Steam trap
- 12' electrical cord
- Treats up to 2 cu. yards of soil in approx 1 1/2 hours
SG15 STEAM GENERATOR SPECIFICATIONS:
- Fuel is No. 2 diesel
- Vented 8” chimney connection
- 120 volt electrical power supply at 20 amps
- Four minute steam at 45 lbs. (55° water to 300° steam temperature)
- 42 gallon fuel tank, 2 ¼ - 2 ½ gallon per hour usage
- Highly mobile with pull tongue and auto type steering
- All fittings and hose required for steam delivery are furnished
- Water supply – 45 PSI, ¾” hose and 3 GPM minimum
- “Clearwave” water conditioning for reduced lime build up
- Gauges for all adjustable controls and steam temperature monitoring
- Start up water diverter (manual) in the system
- One year warranty on all parts (freezing of unit excluded)
STEAM CABINET FEATURES:
- 14 gauge polished stainless steel
- Gasket sealed, fully latching doors.
- Available in 84” and 110” models
Double Steam Cabinet Operation:
- Load cabinet 1
- Move 3-way valve to send steam to cabinet 1
- Load/unload cabinet 2
- When cabinet 1 is complete, move 3-way valve to send steam to cabinet 2
- Unload/load cabinet 1
- When cabinet 2 is complete, move 3-way valve to send steam to cabinet 1
- Repeat cycle as required.
