Roller-Hook ~ makes trellising vining crops simple & easy

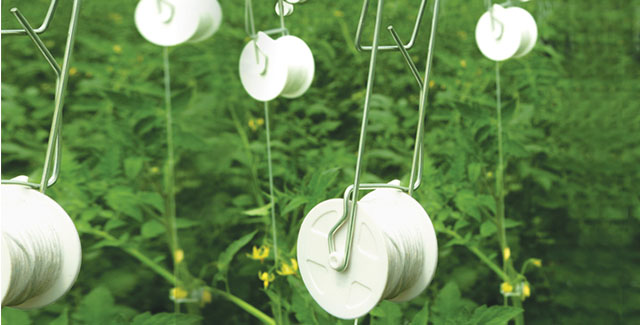

The Roller-Hook is an innovative simple vining crop trellising hook device which allows for the lowering and cleaning of tomato or cucumber plant quickly and safely due to its unique design.

With the Roller-Hook, the process of adjusting the vining plants on it’s support twine is achieved with one hand on the trellising twine, a squeeze of the lock mechanism with the other hand….then the unit slides down the overhead support wire the required distance as the plant is lowered to workable height.

This time and labor saving seamless process is made possible only with the Roller-Hook. Besides enhanced efficiency of working conditions, a specialized safety feature prevents the unit from slipping off the overhead support wire.

The Roller-Hook consists of a pre-wound spook with 25 to 36 meters of UV stabilized twin which lasts up to three back to back crops before replacement is needed.

All these features of the Roller-Hook results in substantial savings in labor and material costs.

Cost effective:

Provides significant increase in yield and quality.
Attaches to existing trellising wires.
Reusable for several seasons; just change the spool when the twine is finished.
Available with double twine on one spool to enable
lowering two vines together.
Spools come with 25 - 36 meters of UV resistant twine.
Suitable for 2.5 to 4.0 mm trellising wire.

Please call 1-800-531-4769 for inquiries on volume purchases.

Back

Options
Pricing
Specifications
Support
Accessories

Options

Pricing

Model #	Description	Price	Buy Now
G02-RHA	Roller-Hook	Call for Price	--

Specifications

Roller-Hook is a state of the art trellis hook. The unique design of Roller-Hook enables easy, efficient, and safe trellising of greenhouse tomato plants. Each Roller-Hook is composed of two parts, a multi season metal frame and a disposable spool. The unique design prevents the hook from accidentally slipping off the trellis wire.

Diameter : 55 mm

Twine color:Black, White

Type of crop :Cucumber, Tomato

Twine length:25,32,36 m

Multi season:Yes

Roller-Hook's advantages:
- Quick and easy operation.
- Full control of plant's lowering.
- Disposable spool with up to 36 meters of UV resistant twine.
- Up to three consecutive growing cycles.
- Low-cost use.
- Suitable for 2.5 to 4.0 mm trellising wire
Protects the crop:
- Ensures full control of lowering length and plant height.
- Designed to prevent slipping off the trellising wire.
- Plant is lowered smoothly and gently.
Eases workload:
- Simple to operate.
- Twine is released quickly and easily
Support

Installation Tips:

Operating Instructions

A. Installing the spool

Roller-Hook is composed of two separate parts, the spool and the metal frame hook. To assemble Roller-Hook:

1. Hold the hook vertically with the locking arm (a) under your thumb. Ensure the orientation of the axle holder (b) is as illustrated. Squeeze the locking arm against the top bar

2. Place the spool axle (d) located on opposite side of the spool stopper (c) on the lower axle holder.

3. Turn the spool while inserting the spool axle into its holder. Turn the spool around the lower axle until the opposite axle is below the top axle holder

4. Push the locking arm with the spool to center the axle with the axle holder and then release the top hook bar

5. Roller-Hook is ready for operation when the two axles are inserted in their axle holders, the spool stopper is attached to the locking arm, and the twine edge is loose.

B. Installing Roller-Hook on the

Greenhouse Trellis Wire Hang Roller-Hook on the trellis wire (b). Verify that the locking arm (a) faces the direction in which plants will lower.

C. Routine Usage

To lower the plant: Hold the twine in one hand. Using the other hand, squeeze the locking arm (c) to release the stopper. Release the twine while moving Roller-Hook along the trellis wire in the direction that the plant is intended to lower.

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@greenhouse
