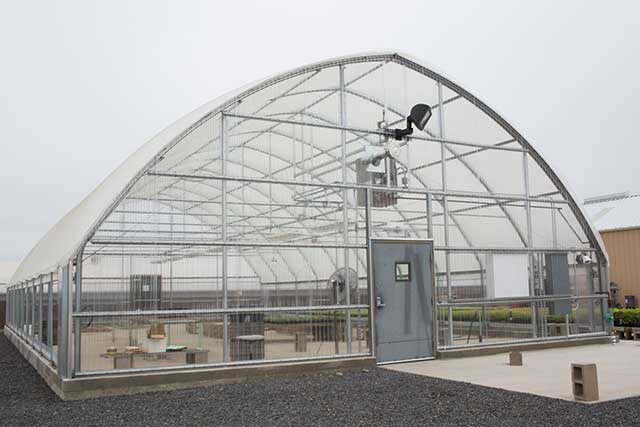

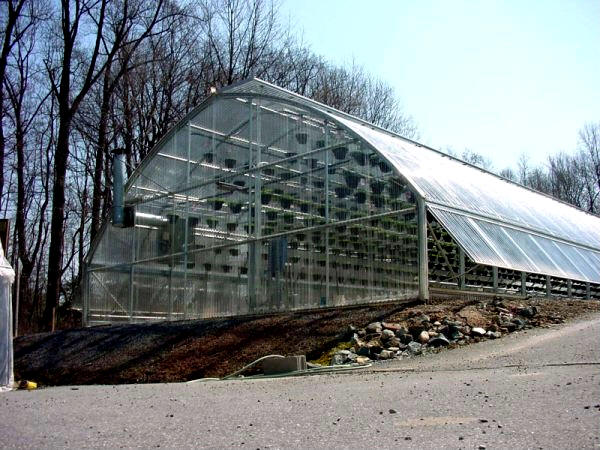

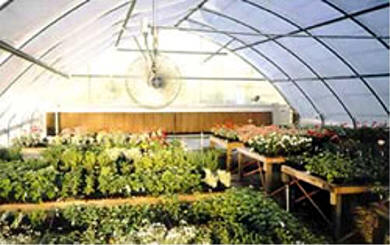

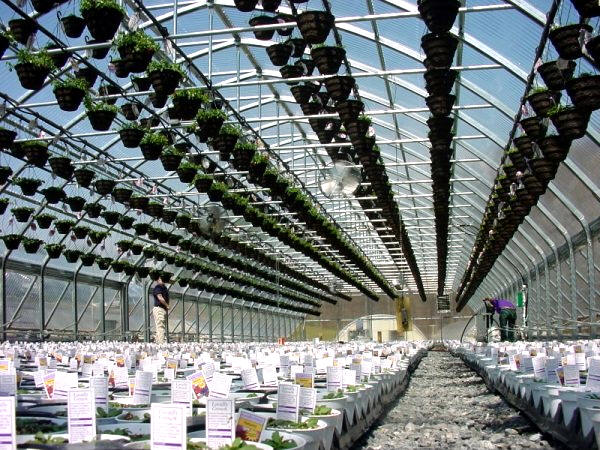

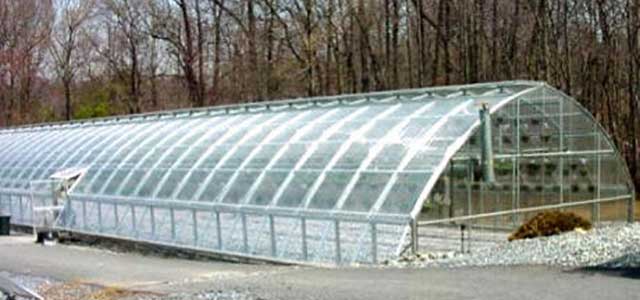

Ranger Greenhouse

Whether you are just starting out or in the process of expanding, the versatility of the RANGER offers a natural no-nonsense solution for obtaining maximum productivity while reducing capitol investments. The RANGER is equally at home as a growing area or sophisticated retail center. It can be covered with polyethylene, shade cloth, or rigid coverings including polycarbonates. Almost 60 years of experience go into each RANGER fabricated. Every detail has been field tested and refined to guarantee complete customer satisfaction .

Features:

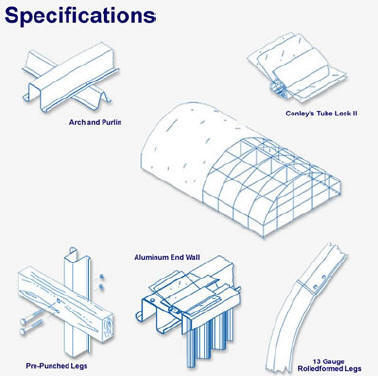

ROLL-FORM arches, legs, and purlins insure unmatched structural integrity
Gothic Arch design is engineered to reduce roof snow build-up and provide maximum headroom.
Engineered to meet the stringent standards of the International Building Codes.

Value:

Components are shipped pre-punched and cut to length, simplifying the installation.
ROLL-FORM components nest one into the other during shipment, substantially reducing freight rates.

Options
Pricing
Specifications
Support
Accessories

Options Size
Pricing
Specifications

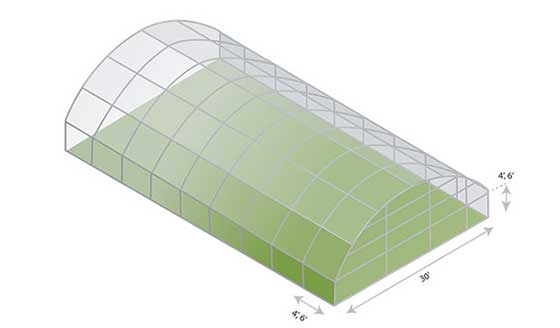

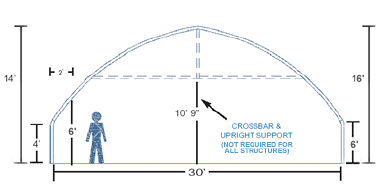

Dimensions:

» Widths: 30'
» Under-Gutter Height: 4' - 6'
» Column Spacing: 4'- 6'

» Rack & Pinion roof vents.
» Rack & Pinion side or end vents.
» Roll-up side or end wall curtains.
» Swing, sliding or roll-up door assemblies.
» Internal retractable shade systems.
» Exhaust fans, circulation fans and evaporative cooling systems.
» Space heaters, hot water heaters or radiant heat systems.
» Stationary, rolling or portable bench assemblies.
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Recommended Accessories N/A

Ventilation System: Ventilation Fan is one of the most important requirements in the greenhouse cooling system for a greenhouse. Exhaust fans are nice for cooling and providing fresh air inside, keeping temperatures in the greenhouse at a reasonable level. you will have all you need to equip your greenhouse with a durable fully automated ventilation system.

Greenhouse Heating: Choose from our wide selection of gas, electric heaters, Greenhouse Heating will keep temperatures in the greenhouse at a reasonable level in summer time.

Evaporative Cooling System: Choose from our aluminum, PVC evaporative cooling systems and 4" or 6" pad thickness. You can choose open top. Open design allows for easy detection and cleaning of clogged holes in the distribution pipe.

Environmental Control Systems: Choose from thermostats or greenhouse controllers. It makes greenhouse temperature control easy. Just connect your heating and cooling equipment and turn the knobs to the desired day and night temperatures. No more dueling thermostats that have cooling systems and heaters running at the same time

Circulation Fans: Circulation fans provide constant air circulation within the greenhouse space. Helping plant health by reducing disease caused by condensation on plant leaves.
