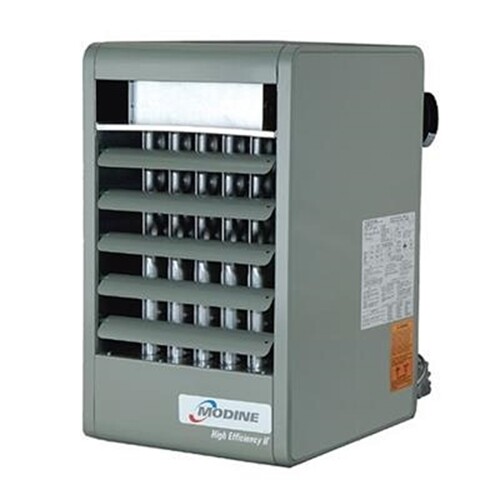

Modine PDP Power Vented Unit Heaters

Modine PDP Power-Vented Unit Heaters are a reliable and efficient heating solution designed for industrial and commercial spaces. These heaters feature a power-vented design for easy installation and venting, as well as a hot surface ignition system and a high-efficiency fan motor for quiet operation. With input capacities ranging from 150,000 to 400,000 BTU/hr, the Modine PDP is a versatile and dependable heating option that can meet the demands of any industrial or commercial application.

Be the first to review this product

Free shipping

$0.00

Qty:

Product Details

83% thermal efficiency
Intermittent pilot ignition (spark ignition) with continuous retry control system
100% shut-off if the unit does not light to ensure unburned gases do not build up in the unit
Propeller unit heater
Choose from Natural Gas or Propane
Totally enclosed motor
115V/60Hz/1Ph
Requires only a vent pipe and connections to a gas and electric line for installation
Fans engineered for quiet operation.
Aluminized steel heat exchanger is standard (stainless steel heat exchanger available by special order)
Designed for suspended mounting
Power exhaust can be rotated 180° for horizontal or vertical venting
Safety pressure switch to ensure safe venting conditions
CSA certification for commercial and industrial use in the United States and Canada

Specifications

Unit	BTU Input	BTU Output	CFM	Air Temp Rise	Mounting Height Max	Heat Throw	Motor HP	Dimensions L x W x H	Vent Diameter (kit sold separately)
PDP150	150,000	123,000	2,180	51°	16'	55'	1/6	21" x 35 1/4" x 29 13/16"	5"
PDP175	175,000	143,500	2,550	51°	17'	59'	1/6	23 1/2" x 35 1/4" x 29 9/16"	5"
PDP200	200,000	164,000	2,870	50°	15'	51'	1/3	25 5/8" x 40 1/4" x 34 3/4"	5"
PDP250	250,000	207,500	3,700	50°	19'	67'	1/3	25 5/8" x 40 1/4" x 34 3/4"	6"
PDP300	300,000	249,000	4,460	50°	21'	74'	1/2	28 5/8" x 40 1/4" x 34 3/4"	6"
PDP350	350,000	290,500	4,870	53°	20'	70'	1/2	33 5/8" x 40 1/4" x 34 11/16"	6"
PDP400	400,000	332,000	5,440	54	19'	69'	3/4	40" x 40 1/4" x 38 3/16"	6'
