Gothic Arch Green Houses

Gothic High Tunnel

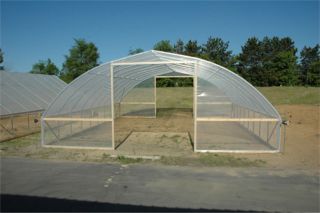

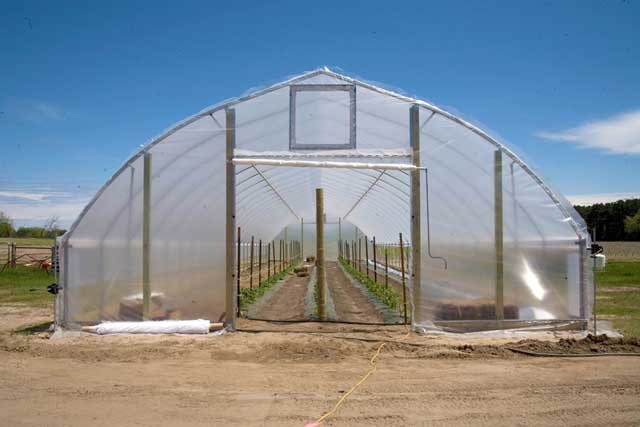

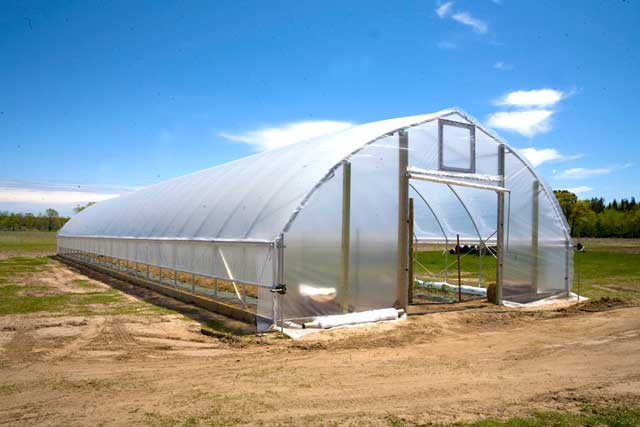

Gothic High Tunnel is designed with the small fruit and specialty crop grower in mind. The frame goes up quickly and easily so you can get an earlier jump on the growing season. Durable roof poly and roll-up sides will provide an environment that will extend your growing season, protect your crop, and increase your yield and profits. The High Tunnel is available in three standard widths and can be easily configured to meet your needs. Call today and start growing like a pro.

• Extend your growing season
• Increase crop quality, yield and profits!
• Save on water
• Provides frost protection
• Optional 4' or 6' Frame Spacing
• 20', 24' & 30' Widths Available
• Fittings & Hardware Available For Your Lumber

Back to cold frame Page

• Options
• Pricing
• Specifications
• Support
• Accessories

• Options

  20'W , 24' W, 30'W.

• Pricing

  Frame only price includes: Five-piece frame sections, ground stakes, (2) purlin 20’ & 24’, (3) purlin 30’, (4) diagonal wind braces, cable bracing (gable style) peak bracing (gothic-style), ground stake driver, assembly hardware and a set up manual. Lumber not included.
  4ft Sidewall -Frame Only - 4' foot spacing price
  Items	Size	Pricing	Buy Now
  P01-GOHT44-2024	20' x 24'	--	Call to Order
  P01-GOHT44-2036	20' x 36'	--	Call to Order
  P01-GOHT44-2048	20' x 48'	--	Call to Order
  P01-GOHT44-2072	20' x 72'	--	Call to Order
  P01-GOHT44-2096	20' x 96'	--	Call to Order
  P01-GOHT44-2424	24' x 24'	$1,949.00	Call to Order
  P01-GOHT44-2436	24' x 36'	--	Call to Order
  P01-GOHT44-2448	24' x 48'	--	Call to Order
  P01-GOHT44-2472	24' x 72'	--	Call to Order
  P01-GOHT44-2496	24' x 96'	--	Call to Order
  P01-GOHT44-3024	30' x 24'	--	Call to Order
  P01-GOHT44-3036	30' x 36'	--	Call to Order
  P01-GOHT44-3048	30' x 48'	--	Call to Order
  P01-GOHT44-3072	30' x 72'	--	Call to Order
  P01-GOHT44-3096	30' x 96'	--	Call to Order
  4ft Sidewall -Frame Only -6'foot spacing price
  P01-GOHT46-2024	20' x 24'	--	Call to Order
  P01-GOHT46-2036	20' x 36'	--	Call to Order
  P01-GOHT46-2048	20' x 48'	--	Call to Order
  P01-GOHT46-2072	20' x 72'	--	Call to Order
  P01-GOHT46-2096	20' x 96'	--	Call to Order
  P01-GOHT46-2424	24' x 24'	--	Call to Order
  P01-GOHT46-2436	24' x 36'	--	Call to Order
  P01-GOHT46-2448	24' x 48'	--	Call to Order
  P01-GOHT46-2472	24' x 72'	--	Call to Order
  P01-GOHT46-2496	24' x 96'	--	Call to Order
  P01-GOHT46-3024	30' x 24'	--	Call to Order
  P01-GOHT46-3036	30' x 36'	--	Call to Order
  P01-GOHT46-3048	30' x 48'	--	Call to Order
  P01-GOHT46-3072	30' x 72'	--	Call to Order
  P01-GOHT46-3096	30' x 96'	--	Call to Order
  6ft Sidewall -Frame Only - 4' foot spacing price
  Items	Size	Pricing	Buy Now
  P01-GOHT64-2024	20' x 24'	--	Call to Order
  P01-GOHT64-2036	20' x 36'	--	Call to Order
  P01-GOHT64-2048	20' x 48'	--	Call to Order
  P01-GOHT64-2072	20' x 72'	--	Call to Order
  P01-GOHT64-2096	20' x 96'	--	Call to Order
  P01-GOHT64-2424	24' x 24'	--	Call to Order
  P01-GOHT64-2436	24' x 36'	--	Call to Order
  P01-GOHT64-2448	24' x 48'	--	Call to Order
  P01-GOHT64-2472	24' x 72'	--	Call to Order
  P01-GOHT64-2496	24' x 96'	--	Call to Order
  P01-GOHT64-3024	30' x 24'	--	Call to Order
  P01-GOHT64-3036	30' x 36'	--	Call to Order
  P01-GOHT64-3048	30' x 48'	--	Call to Order
  P01-GOHT64-3072	30' x 72'	--	Call to Order
  P01-GOHT64-3096	30' x 96'	--	Call to Order
  6ft Sidewall -Frame Only -6'foot spacing price
  P01-GOHT66-2024	20' x 24'	--	Call to Order
  P01-GOHT66-2036	20' x 36'	--	Call to Order
  P01-GOHT66-2048	20' x 48'	--	Call to Order
  P01-GOHT66-2072	20' x 72'	--	Call to Order
  P01-GOHT66-2096	20' x 96'	--	Call to Order
  P01-GOHT66-2424	24' x 24'	--	Call to Order
  P01-GOHT66-2436	24' x 36'	--	Call to Order
  P01-GOHT66-2448	24' x 48'	--	Call to Order
  P01-GOHT66-2472	24' x 72'	--	Call to Order
  P01-GOHT66-2496	24' x 96'	--	Call to Order
  P01-GOHT66-3024	30' x 24'	--	Call to Order
  P01-GOHT66-3036	30' x 36'	--	Call to Order
  P01-GOHT66-3048	30' x 48'	--	Call to Order
  P01-GOHT66-3072	30' x 72'	--	Call to Order
  P01-GOHT66-3096	30' x 96'	--	Call to Order
  Complete package price includes: Everything in the frame only price and: upper and baseboard lumber U-clamps, end-wall lumber mount fittings and hardware, Wiggle Wire™ poly fastening system, single- layer clear poly roof and ends, (2) full-length manual roll-up ventilation systems. Lumber not included
  4ft Sidewall -Complete package-4' foot spacing price
  Items	Size	Pricing	Buy Now
  P01-GOHT44C-2024	20' x 24'	--	Call to Order
  P01-GOHT44C-2036	20' x 36'	--	Call to Order
  P01-GOHT44C-2048	20' x 48'	--	Call to Order
  P01-GOHT44C-2072	20' x 72'	$9,526.00	Call to Order
  P01-GOHT44C-2096	20' x 96'	--	Call to Order
  P01-GOHT44C-2424	24' x 24'	--	Call to Order
  P01-GOHT44C-2436	24' x 36'	--	Call to Order
  P01-GOHT44C-2448	24' x 48'	--	Call to Order
  P01-GOHT44C-2472	24' x 72'	--	Call to Order
  P01-GOHT44C-2496	24' x 96'	--	Call to Order
  P01-GOHT44C-3024	30' x 24'	--	Call to Order
  P01-GOHT44C-3036	30' x 36'	--	Call to Order
  P01-GOHT44C-3048	30' x 48'	--	Call to Order
  P01-GOHT44C-3072	30' x 72'	--	Call to Order
  P01-GOHT44C-3096	30' x 96'	--	Call to Order
  4ft Sidewall -Complete package-6'foot spacing price
  P01-GOHT46C-2024	20' x 24'	--	Call to Order
  P01-GOHT46C-2036	20' x 36'	--	Call to Order
  P01-GOHT46C-2048	20' x 48'	--	Call to Order
  P01-GOHT46C-2072	20' x 72'	--	Call to Order
  P01-GOHT46C-2096	20' x 96'	--	Call to Order
  P01-GOHT46C-2424	24' x 24'	--	Call to Order
  P01-GOHT46C-2436	24' x 36'	--	Call to Order
  P01-GOHT46-2448	24' x 48'	--	Call to Order
  P01-GOHT46C-2472	24' x 72'	--	Call to Order
  P01-GOHT46C-2496	24' x 96'	--	Call to Order
  P01-GOHT46C-3024	30' x 24'	--	Call to Order
  P01-GOHT46C-3036	30' x 36'	--	Call to Order
  P01-GOHT46-3048	30' x 48'	--	Call to Order
  P01-GOHT46C-3072	30' x 72'	--	Call to Order
  P01-GOHT46C-3096	30' x 96'	--	Call to Order
  6ft Sidewall -Complete package-4' foot spacing price
  Items	Size	Pricing	Buy Now
  P01-GOHT64C-2024	20' x 24'	--	Call to Order
  P01-GOHT64C-2036	20' x 36'	--	Call to Order
  P01-GOHT64C-2048	20' x 48'	--	Call to Order
  P01-GOHT64C-2072	20' x 72'	--	Call to Order
  P01-GOHT64C-2096	20' x 96'	--	Call to Order
  P01-GOHT64C-2424	24' x 24'	--	Call to Order
  P01-GOHT64C-2436	24' x 36'	--	Call to Order
  P01-GOHT64C-2448	24' x 48'	--	Call to Order
  P01-GOHT64C-2472	24' x 72'	--	Call to Order
  P01-GOHT64C-2496	24' x 96'	--	Call to Order
  P01-GOHT64C-3024	30' x 24'	--	Call to Order
  P01-GOHT64C-3036	30' x 36'	--	Call to Order
  P01-GOHT64C-3048	30' x 48'	--	Call to Order
  P01-GOHT64C-3072	30' x 72'	--	Call to Order
  P01-GOHT64C-3096	30' x 96'	--	Call to Order
  6ft Sidewall -Complete package-6'foot spacing price
  P01-GOHT66C-2024	20' x 24'	--	Call to Order
  P01-GOHT66C-2036	20' x 36'	--	Call to Order
  P01-GOHT66C-2048	20' x 48'	--	Call to Order
  P01-GOHT66C-2072	20' x 72'	--	Call to Order
  P01-GOHT66C-2096	20' x 96'	--	Call to Order
  P01-GOHT66C-2424	24' x 24'	--	Call to Order
  P01-GOHT66C-2436	24' x 36'	--	Call to Order
  P01-GOHT66-2448	24' x 48'	--	Call to Order
  P01-GOHT66C-2472	24' x 72'	--	Call to Order
  P01-GOHT66C-2496	24' x 96'	--	Call to Order
  P01-GOHT66C-3024	30' x 24'	--	Call to Order
  P01-GOHT66C-3036	30' x 36'	--	Call to Order
  P01-GOHT66-3048	30' x 48'	--	Call to Order
  P01-GOHT66C-3072	30' x 72'	--	Call to Order
  P01-GOHT66C-3096	30' x 96'	--	Call to Order

• Specifications

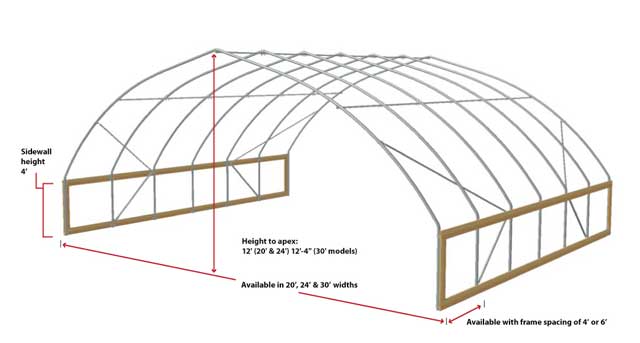

  Size:Width:20', 24' & 30'

  Length: starting at 16’ with increments of 4’ or 6’

  Height at apex:12’ (20’ & 24’ models), 12’-4” (30’ models)

  Frame spacing:4' or 6'

  Covering: Clear or white 6 mil. UVI treated polyethylene

  End wall cover: Clear or white 6 mil. UVI treated polyethylene

  Frame: 1.66” O.D. 14ga. galvanized steel tube (20’ & 24’ models) 2” O.D. 14ga. galvanized steel tube (30’ models)

  Purlin: 1.315” O.D. 17ga. galvanized steel tube



• Support

  If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

  Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

  FAX: 251-471-5465

  E-mail: info@gothicarchgreenhouses.net

• Accessories

  Recommended Accessories



  Poly Film: Choose from 1-year or 4-year, 6mil poly covering. Available in clear or white.

  Call for volume purchases.

  >> More information



  Poly Patch Tape: Poly Patch is the leading film repair tape in America. A complete first-aid kit for greenhouses, this easy-to-use patching tape bonds aggressively to polyethylene film.

  Call for volume purchases.



  Wiggle Wire™ poly attachment system: Used on thousands of greenhouses, Wiggle Wire has proven to be a low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.

  P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

  P01-WIGLWIRE 6-foot stainless steel Wiggle Wire



  Galvanized End Frame Packages: Optional galvanized end frame kit speeds set up and eliminates the need for any lumber. Heavy-duty swinging door includes 8mm clear polycarbonate sheeting.

  Galvanized End Frame Package
  Galvanized end frame with door: 14' (3' x 6'-8") 16', 18' or 20' (4' x 6'-8")
