Free Air Series 5000 Greenhouse

Free Air Series 5000

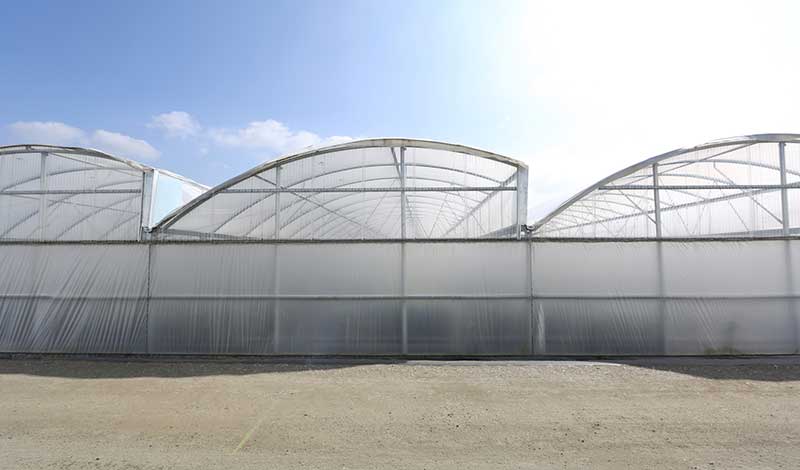

FREE AIR SERIES 5000 line of greenhouse combines proven ventilation technology with structural ingenuity. The arched roof profile of this structure is ideally suited for polyethylene covering, giving the grower optimized growing environments at reduced capital investments. Adaptable to our full line of oversized roll-up curtains as well as automated shade systems, this structure represents one of the most efficiently designed, naturally ventilated greenhouses existing on the market today.

Features:

Superior strength ROLL-FORM arches, purlins, and gutters insure unmatched structural integrity.
Large easy-to-walk-in ROLL-FORM gutters are lapped one into the other and cantilevered for increased strength.
Arches spaced on 6' centers.
Available with extended columns to accommodate overhead retractable shade systems

Value:

ROLL-FORM components nest one onto the other during shipment, substantially reducing freight rates.
Components are shipped pre-punched and cut to length, simplifying the installation

Back to Free Air main page

Options
Pricing
Specifications
Support
Accessories

Options Size

24' W
30' W
Pricing
Specifications

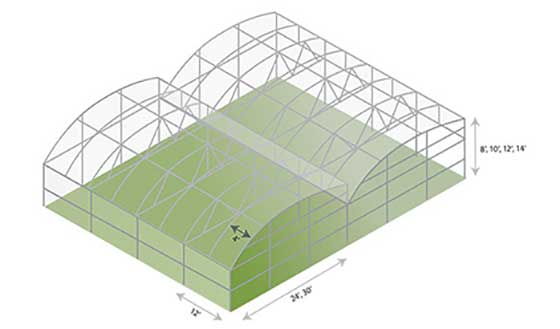

Dimensions:

»Widths: 24' - 30'
»Under-Gutter Height: 8' - 10' -12'-14'
»Column Spacing: 12

»Roll-up side or end wall curtains.
»Swing, sliding or roll-up door assemblies.
»Automated over-head retractable shade systems.
»Circulation fans and high-efficiency fog systems.
»Space heaters, hot water heaters or radiant heating systems.
»Stationary, rolling or portable bench assemblies.
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Recommended Accessories N/A

Ventilation System: Ventilation Fan is one of the most important requirements in the greenhouse cooling system for a greenhouse. Exhaust fans are nice for cooling and providing fresh air inside, keeping temperatures in the greenhouse at a reasonable level. you will have all you need to equip your greenhouse with a durable fully automated ventilation system.

Greenhouse Heating: Choose from our wide selection of gas, electric heaters, Greenhouse Heating will keep temperatures in the greenhouse at a reasonable level in summer time.

Evaporative Cooling System: Choose from our aluminum, PVC evaporative cooling systems and 4" or 6" pad thickness. You can choose open top. Open design allows for easy detection and cleaning of clogged holes in the distribution pipe.

Environmental Control Systems: Choose from thermostats or greenhouse controllers. It makes greenhouse temperature control easy. Just connect your heating and cooling equipment and turn the knobs to the desired day and night temperatures. No more dueling thermostats that have cooling systems and heaters running at the same time

Circulation Fans: Circulation fans provide constant air circulation within the greenhouse space. Helping plant health by reducing disease caused by condensation on plant leaves.
