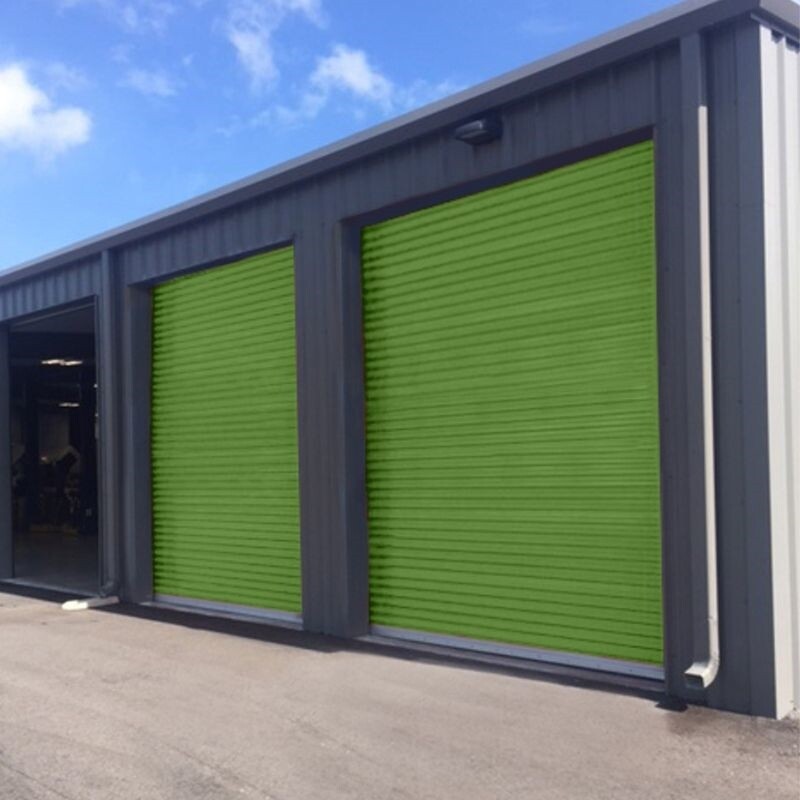

Commercial Roll Up Door Model 3400 / 3400i

Commercial Steel Roll Up Greenhouse Door 3400 is a greenhouse or commercial building door that is made of durable, long-lasting materials. Most parts come pre-assembled, ensuring that installation is quick and easy. This door is ideal for greenhouses, retail applications, commercial and industrial properties, and warehouses in high wind areas. • Designed to meet stringent building codes in coastal regions • Utilizes a 12” drum wheel • The maximum opening size of 20’ wide x 14’ high (280 sq.ft.) • Push-up, hand chain, and electric operations • PSF Ratings: • +35 PSF and -41 PSF for opening widths through 12’ • +35 PSF and -38 PSF for opening widths over 12’ through 16

Be the first to review this product
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

LF

Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 galvanized steel
  • Over 30 Color Options
  • Super Durable polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips

Bottom Bar

  • 24 gauge acrylic-coated galvalume roll-formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel nuts and bolts

Axle/Torque Tube

  • Oil tempered torsion springs conforming to ASTM A229
  • 16-gauge, 12” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guides

  • 12 gauge galvanized steel guide, with 11 gauge windlock bar spot-welded guide
  • Bolt-on head stop ¼” thick steel
  • 2-7/8″ guide depth
  • Pre-punched for lock and attachment bolts
  • Vinyl guide wear strip
  • Universal jamb mount

Hardware

  • Bottom bar-mounted 10 gauge slide locks – 2 per door
  • Bottom bar-mounted 16 gauge step plate – 2 per door
  • 12 gauge door mounting brackets
  • 1-5/16” tension holding device

Tips

3400 Drawing3400 Drawing

Color Chart   Color Chart
