Cold Frame Series 1000 Greenhouse

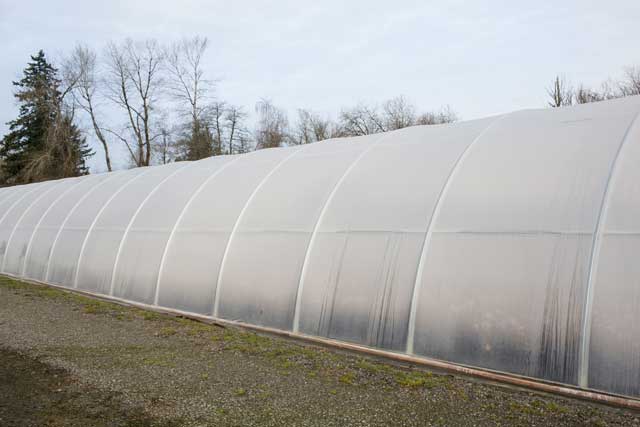

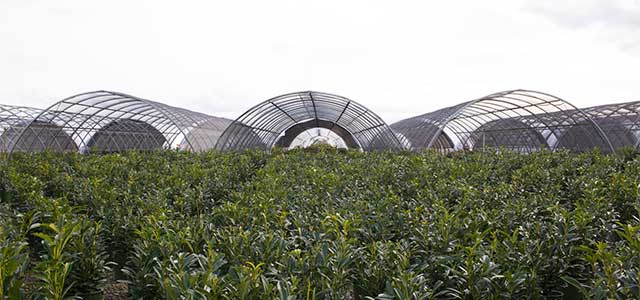

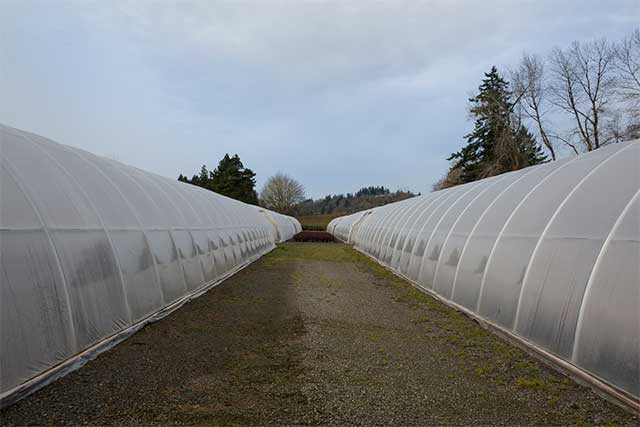

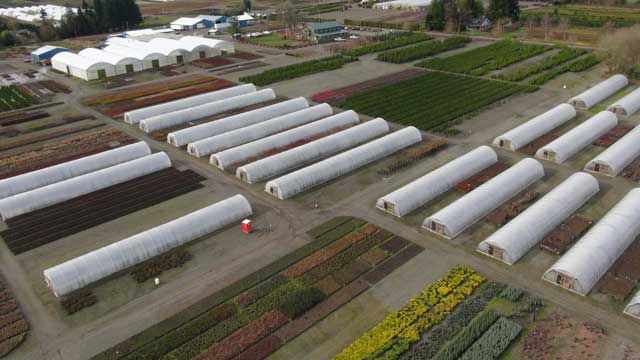

The cold frame series 1000 greenhouse is for backyard gardeners or commercial growers. This greenhouse represents one of the strongest ground to ground designs on the market today. These structures have been employed throughout the world in some of the harshest environments imaginable. ROLL-FORM arches and purlins help to set this house apart from other competitors. In addition to maximizing strength characteristics, ROLL-FORM components “stack” in tight shipping bundles thereby reducing freight costs. This structure is designed specifically for poly or shade cloth coverings and will not work with rigid coverings such as polycarbonate.

Please call 1-800--531-4769 if you need any another size or fill out our Quotation.

Features

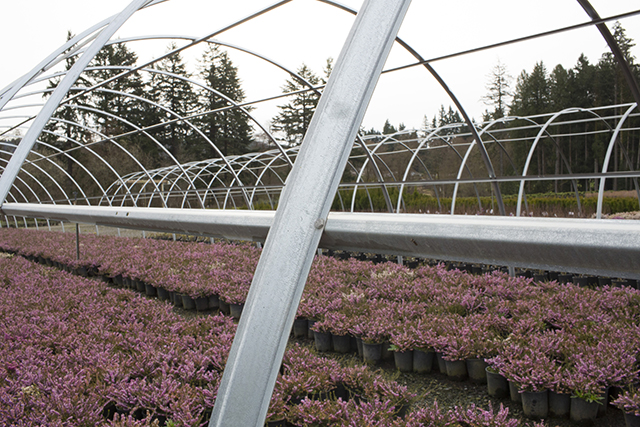

Two-piece arch lap and bolt together,16 & 20 FT. Wide - Ground to Ground
Two-piece arch lap and bolt together
Simple to install
Arches nest together for more efficient shipping
Quick assembly.
Economically priced

Value

Components supplied pre-cut and punched for an easy bolt-together assembly. Step-by-step installation instructions are included.
With more headroom than most structures in its class, ground to ground COLD FRAMES provide ideal environments for growing.

Back to cold frame Page

Options
Pricing
Specifications
Support
Accessories

Options

16'W , 20' W

Pricing

16' Cold Frame (Frame Only) Pricing
Bow Spacing - 4' Ground-Ground)
Items	Size	Weight	Pricing	Buy Now
C04-CF104-1624	16W x7'6"H x 24L	222		Call to Order
C04-CF104-1628	16W x7'6"H x 28L	252		Call to Order
C04-CF104-1632	16W x7'6"H x 32L	282		Call to Order
C04-CF104-1636	16W x7'6"H x 36L	314		Call to Order
C04-CF104-1640	16W x7'6"H x 40L	344		Call to Order
C04-CF104-1644	16W x7'6"H x 44L	374		Call to Order
C04-CF104-1648	16W x7'6"H x 48L	407		Call to Order
C04-CF104-1660	16W x7'6"H x 60L	499		Call to Order
C04-CF104-1672	16W x7'6"H x 72L	592		Call to Order
C04-CF104-1684	16W x7'6"H x 84L	684		Call to Order
C04-CF104-1696	16W x7'6"H x 96L	777		Call to Order
Bow Spacing - 6' (Ground-Ground)
C04-CF106-1624	16W x7'6"H x 24L	173		Call to Order
C04-CF106-1630	16W x7'6"H x 30L	207		Call to Order
C04-CF106-1636	16W x7'6"H x 36L	241		Call to Order
C04-CF106-1642	16W x7'6"H x 42L	275		Call to Order
C04-CF106-1648	16W x7'6"H x 48L	310		Call to Order
C04-CF106-1660	16W x7'6"H x 60L	378		Call to Order
C04-CF106-1672	16W x7'6"H x 72L	446		Call to Order
C04-CF106-1684	16W x7'6"H x 84L	514		Call to Order
C04-CF106-1696	16W x7'6"H x 96L	583		Call to Order
Options
C04-CF1600EW	(1) End Galv Steel Endwall Frame	72		Call to Order
C04-ZAC16CF	(1) End Arched Gable End Bar w/clip	23		Call to Order
C04-ZTL212W	(1)12' ALUM Tube Lock w/Clip	5		Call to Order
C04-ZVP12S	(1)12' ALUM Vinni Pet w/Spring	3		Call to Order
C04-ZT030885	(1)Anchor TAB W/Screws	0.34		Call to Order
C04-ZCARR2 x4	(4)1/4" x 2" Carr Bolt w/Nuts	0.17		Call to Order
C04-G0000312	(1)5" x 12'-4" Girt for Framing	11		Call to Order
C04-ST0RM310	Storm Door Kit 3' x 6'-8"(R.H.)	67		Call to Order
20' Cold Frame (Frame Only) Pricing
Bow Spacing - 4' (Ground-Ground)
Items	Size	Weight	Pricing	Buy Now
C04-CF104-2024	20W x 10'H x 24L	387		Call to Order
C04-CF104-2028	20W x 10'H x 28L	629		Call to Order
C04-CF104-2032	20W x 10'H x 32L	497		Call to Order
C04-CF104-2036	20W x 10'H x 36L	551	$761	Call to Order
C04-CF104-2040	20W x 10'H x 40L	607		Call to Order
C04-CF104-2044	20W x 10'H x 44L	662		Call to Order
C04-CF104-2048	20W x 10'H x 48L	714		Call to Order
C04-CF104-2060	20W x 10'H x 60L	878		Call to Order
C04-CF104-2072	20W x 10'H x 72L	1042		Call to Order
C04-CF104-2084	20W x 10'H x 84L	1205		Call to Order
C04-CF104-2096	20W x 10'H x 96L	1369		Call to Order
Bow Spacing - 6' (Ground-Ground)
C04-CF106-2024	20W x 10'H x 24L	291		Call to Order
C04-CF106-2030	20W x 10'H x 30L	349		Call to Order
C04-CF106-2036	20W x 10'H x 36L	407		Call to Order
C04-CF106-2042	20W x 10'H x 42L	465		Call to Order
C04-CF106-2048	20W x 10'H x 48L	523		Call to Order
C04-CF106-2060	20W x 10'H x 60L	638		Call to Order
C04-CF106-2072	20W x 10'H x 72L	754		Call to Order
C04-CF106-2084	20W x 10'H x 84L	870		Call to Order
C04-CF106-2096	20W x 10'H x 96L	985		Call to Order
Options
C04-CL2000EW	(1) End Galv Steel Endwall Frame	67		Call to Order
C04-ZAC20CFL	(1) End Arched Gable End Bar w/clip	32	$225/ea	Call to Order
C04-ZTL212W	(1)12' ALUM Tube Lock w/Clip	5		Call to Order
C04-ZVP12S	(1)12' ALUM Vinni Pet w/Spring	3		Call to Order
C04-ZT030885	(1)Anchor TAB W/Screws	0.34		Call to Order
C04-ZCARR2 x4	(4)1/4" x 2" Carr Bolt w/Nuts	0.14		Call to Order
C04-G0000312	(1)5" x 12'-4" Girt for Framing	11		Call to Order
C04-ST0RM310	Storm Door Kit 3' x 6'-8"(R.H.)	67		Call to Order
C04-CFL20050	Cross Tube W/(1) Support Tube	11		Call to Order

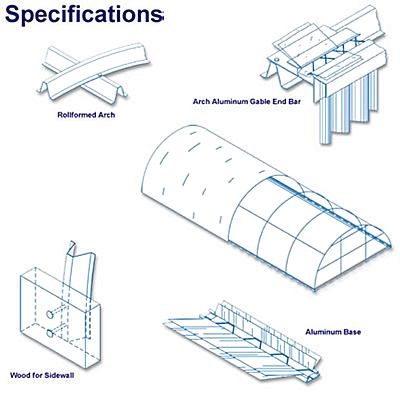

Specifications

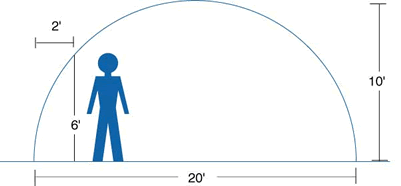

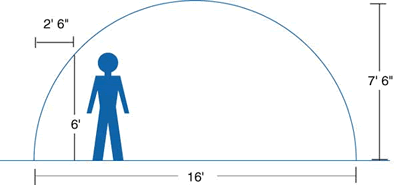

Sizes
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5238

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

Poly Film: Choose from 1-year or 4-year, 6mil poly covering. Available in clear or white.
Call for volume purchases.

>> More information

Poly Patch Tape: Poly Patch is the leading film repair tape in America. A complete first-aid kit for greenhouses, this easy-to-use patching tape bonds aggressively to polyethylene film.

Call for volume purchases.

Wiggle Wire™ poly attachment system: Used on thousands of greenhouses, Wiggle Wire has proven to be a low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

Galvanized End Frame Packages: Optional galvanized end frame kit speeds set up and eliminates the need for any lumber. Heavy-duty swinging door includes 8mm clear polycarbonate sheeting.

Galvanized End Frame Package
Galvanized end frame with door: 14' (3' x 6'-8") 16', 18' or 20' (4' x 6'-8")
