Aquafog HRSM Humidifier Fogger

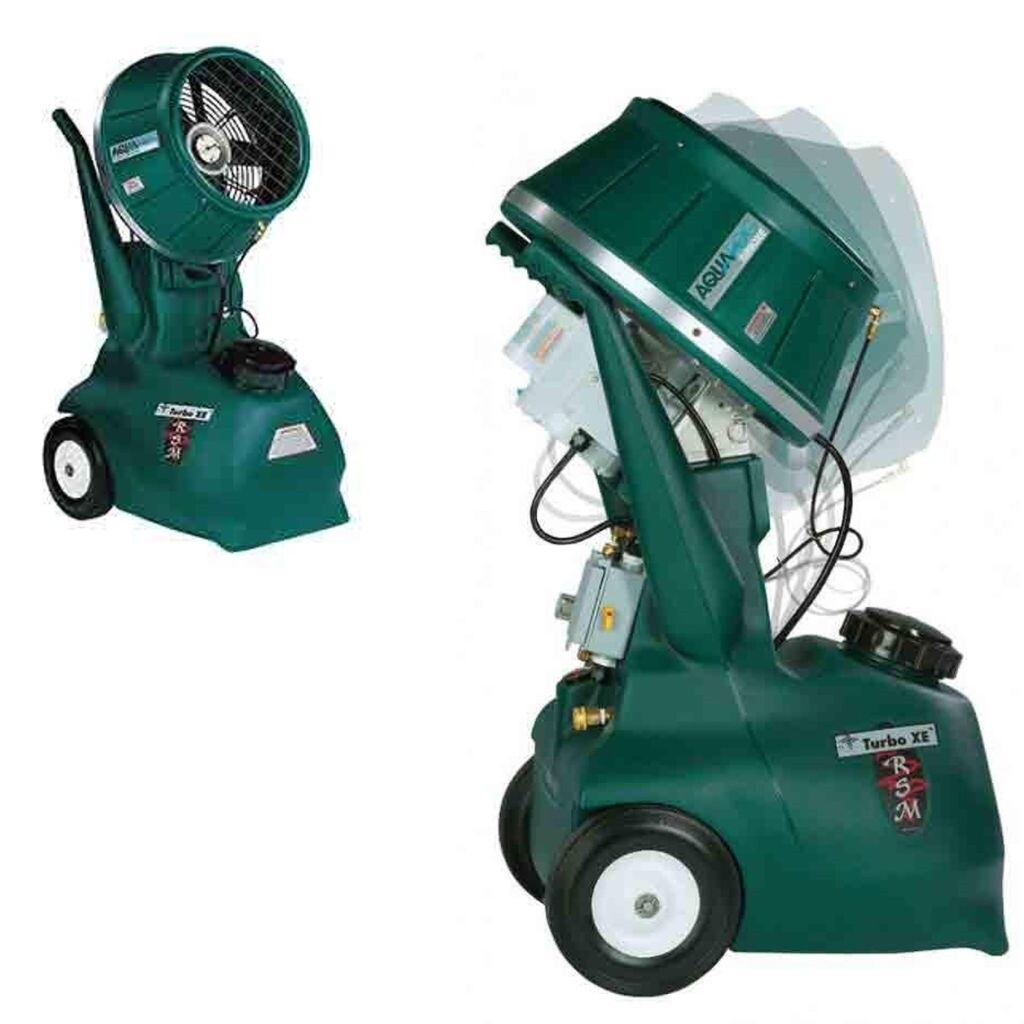

Aquafog HRSM Humidifier Fogger is a robust and portable device with impressive power for its compact size. It excels in various applications, such as large-scale humidification, fumigation, and evaporative and spot cooling. Thanks to its pivoting fogging head, you can direct the fine-mist output precisely where needed. Aquafog HRSM combines the TurboXE Fan with a condensation recirculation tank, making it highly mobile and user-friendly.
Description
Aquafog HRSM Humidifier Fogger is versatile and fully adjustable, with up to 32 gallons per hour of fogging capabilities. Whether used indoors or outdoors, it can propel a powerful jet stream of misty-fog mixed airflow up to 35 feet in distance. Aquafog HRSM's 18-gallon reservoir tank has a large mouth opening, which makes it easy to add liquid chemicals for fumigation and sterilization applications. An internal float valve assembly with a garden hose connection allows continuous-duty applications, making it ideal for extended use.
- Nozzle-Free Atomization
- Adjustable Output up to 32 GPH
- Chemical & Corrosion Resistant
- Indoor or Outdoor Use
- Arrives Fully Assembled
Additional Information
Dimensions: | Width 21 in / 53 cm Length 25.5 in / 65 cm Height 44 in / 112 cm |
Approximate Weight: | 80 lbs / 36.3 kg |
Approximate Shipping Weight: | 129 lbs / 58.5 kg |
Propulsion Distance: | 30 - 35 ft / 9.1 - 10.5 m |
Fogging Head Pivot Angle: | 0°, 15°, 30°, 45° |
Noise @ 10 ft distance: | 72 dB(A) - 60Hz 70 dB(A) - 50Hz |
Output Range: | 2 - 32 GPH (60Hz) 7.6 - 104 LPH (50Hz) |
Average Particle Size: | 5-10 microns @ low output 25 microns @ mid output 35 microns @ high output |
Tank Capacity: | 18 US gal / 68 L |
Main Motor: | 1/2 HP - 7.8 amps @ 115V (60Hz) 1/3 HP - 4.4 amps @ 240V (50Hz) |
CFM: | 3,000 - 60Hz 2,800 - 50Hz |
Hardware: | 300 Series stainless steel |
Environment: | Endures temperatures from 33° to 160° F Indoors / outdoors Humidity to 100% RH UV stabilized & impact resistant |
