Arch 6500 Greenhouse

JA-Frame Greenhouses

The A-Frame's crisp lines and "finished" details tell your customers you are a professional retailer/grower. With standard 90 mph wind load and upgrades available for hurricane force winds, the A-frame's ratings can't be beat. Its 30 lb. roof load handles heavy snow plus hanging baskets!

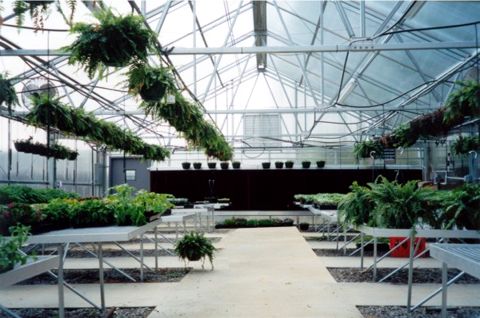

The A-Frame's attractive roofline, versatility and great strength make it the preferred greenhouse for retail display. Covered with polycarbonate, its crisp lines and "finished" details tell your customers that you are a professional retailer/grower.

Compare Strength

A one piece welded galvanized steel, weldment / truss support
Standard 4" x 4", 13 ga. columns
12' column spacing
12' truss spacing
2" square top & bottom chords

Compare Ratings

Standard 90 mph wind load with upgrades available for hurricane force winds.
Up to 42 lbs. snow load on 30' width to handle heavy snow plus your hanging baskets. 34 lb. snow load on 42' width. Narrower frames allow for higher roof load.

Compare Value

You can have this attractive, husky frame in spans up to 42 feet with 12 foot column spacing for maximum clear working space with fewer obstructions... all while giving you one of the strongest load ratings available.

Covered with polycarbonate, to give crisp lines and a finished detail

Options
Pricing
Specifications
Support
Accessories

Options Size

Widths Available - 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 42
Pricing
Specifications

Dimensions:

Widths Available - 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 42
Standard 4" x 4", 13 Ga. Columns
A one-piece galvanized welded steel column cap/truss support
12 Ft. Column Spacing
12 Ft. Truss Spacing
5 Purlins (30 Ft. width)
6/12 Pitch
2" square top and bottom chords
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Recommended Accessories N/A

» Rack & Pinion roof vents.
» Rack & Pinion side or end vents.
» Roll-up side or end wall curtains.
» Swing, sliding or roll-up door assemblies.
» Internal retractable shade systems.
» Exhaust fans, circulation fans and evaporative cooling systems.
» Space heaters, hot water heaters or radiant heat systems.
» Stationary, rolling or portable bench assemblies.

Ventilation System: Ventilation Fan is one of the most important requirements in the greenhouse cooling system for a greenhouse. Exhaust fans are nice for cooling and providing fresh air inside, keeping temperatures in the greenhouse at a reasonable level. you will have all you need to equip your greenhouse with a durable fully automated ventilation system.

Greenhouse Heating: Choose from our wide selection of gas, electric heaters, Greenhouse Heating will keep temperatures in the greenhouse at a reasonable level in summer time.

Evaporative Cooling System: Choose from our aluminum, PVC evaporative cooling systems and 4" or 6" pad thickness. You can choose open top. Open design allows for easy detection and cleaning of clogged holes in the distribution pipe.

Environmental Control Systems: Choose from thermostats or greenhouse controllers. It makes greenhouse temperature control easy. Just connect your heating and cooling equipment and turn the knobs to the desired day and night temperatures. No more dueling thermostats that have cooling systems and heaters running at the same time

Circulation Fans: Circulation fans provide constant air circulation within the greenhouse space. Helping plant health by reducing disease caused by condensation on plant leaves.
