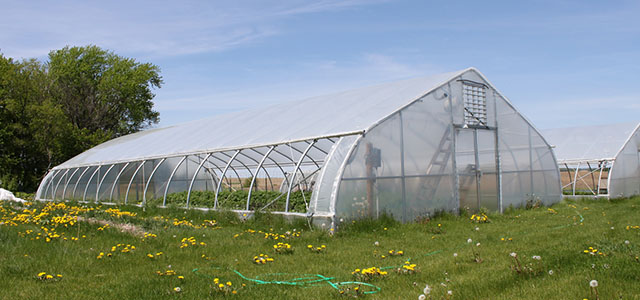

PT-30 Greenhouses

The PT-30 is an innovative greenhouse. It can be used as a seasonal cold frame but is also heavy-duty enough to be used as an inexpensive, year-round growing structure. Order it frame-only or as a complete package with heavy-duty trusses, end frames, doors and poly covering. The complete package assembles quickly with minimal tools and eliminates the time and materials needed to build your own end frames and doors.

Heavy duty: 2" x 14 gage bows in three sections for easy shipping and assembly.
Modular design: Add sections as you need them to expand with your operation.
Frame only or complete package: Add your own poly and ends or get it all from us.

Back to cold frame Page

Options
Pricing
Specifications
Support
Accessories

Options

30'W

Pricing

Frame only price includes: three-piece bows, diagonal wind braces, ground stakes, assembly hardware, (3) purlin runs and set up manual. (End frame verticals are not included.)
4-foot Spacing Frame only price
Items	Size	Pricing	Buy Now
P01-P30-F3024	30'W x 24'L	2244	Call to Order
P01-P30-F3048	30'W x 48'L	--	Call to Order
P01-P30-F3072	30'W x 72'L	--	Call to Order
P01-P30-F3096	30'W x 96'L	--	Call to Order
P01-P30-F30144	30'W x 144'L	--	Call to Order
Frame Only -6'foot spacing price
P01-P30-F3024	30'W x 24'L	--	Call to Order
P01-P30-F3048	30'W x 48'L	--	Call to Order
P01-P30-F3072	30'W x 72'L	--	Call to Order
P01-P30-F3096	30'W x 96'L	--	Call to Order
P01-P30-F30144	30'W x 144'L	--	Call to Order
Complete package price includes: three-piece bows, diagonal wind braces, ground stakes, assembly hardware, (3) purlin runs and set up manual, Three-part truss on every intermediate frame section, Roll-form end frame (packages), roll-form side rails, Wiggle Wire™ poly fastening system, single layer clear poly roof and ends, double swinging end doors (one end).
Complete package -4'foot spacing price
P01-P30-F3024	30'W x 24'L	--	Call to Order
P01-P30-F3048	30'W x 48'L	--	Call to Order
P01-P30-F3072	30'W x 72'L	--	Call to Order
P01-P30-F3096	30'W x 96'L	--	Call to Order
P01-P30-F30144	30'W x 144'L	--	Call to Order
Complete package -6'foot spacing price
P01-P30-F3024	30'W x 24'L	--	Call to Order
P01-P30-F3048	30'W x 48'L	--	Call to Order
P01-P30-F3072	30'W x 72'L	--	Call to Order
P01-P30-F3096	30'W x 96'L	--	Call to Order
P01-P30-F30144	30'W x 144'L	--	Call to Order

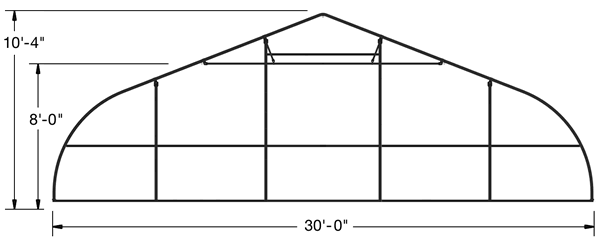

Specifications

Width:30'

Length: Starting at 16' or 18' with increments of 4' or 6'

Purlins: (2) runs of 1.163" x 17 ga. and (1) run of 1.315" x 17 ga. (peak) galvanized steel

Height at apex: 10'-4"

Frame spacing: 4' or 6'

Roof cover: clear or white 6 mil. UVI treated polyethylene

End wall cover: clear or white 6 mil. UVI treated polyethylene

Frame: 2" O.D. 14-gauge galvanized steel tubing

Door: not included
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

Poly Film: Choose from 1-year or 4-year, 6mil poly covering. Available in clear or white.
Call for volume purchases.

>> More information

Poly Patch Tape: Poly Patch is the leading film repair tape in America. A complete first-aid kit for greenhouses, this easy-to-use patching tape bonds aggressively to polyethylene film.

Call for volume purchases.

Wiggle Wire™ poly attachment system: Used on thousands of greenhouses, Wiggle Wire has proven to be a low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

P01-WIGLWIRE 6-foot stainless steel Wiggle Wire

Galvanized End Frame Packages: Optional galvanized end frame kit speeds set up and eliminates the need for any lumber. Heavy-duty swinging door includes 8mm clear polycarbonate sheeting.

Galvanized End Frame Package
Galvanized end frame with door: 14' (3' x 6'-8") 16', 18' or 20' (4' x 6'-8")
