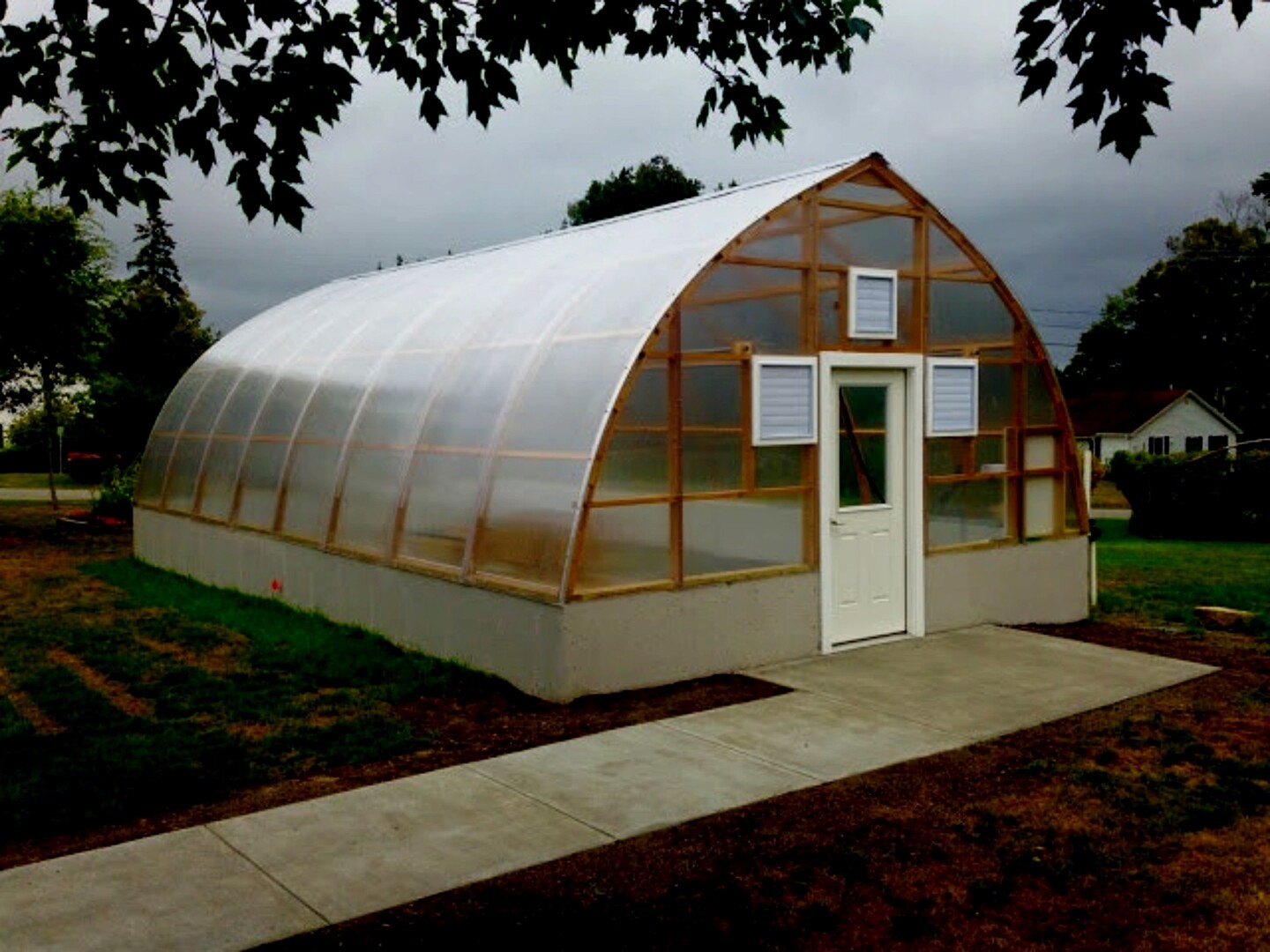

14' W x 20' L Cypress Gothic Arch Greenhouse Complete Package

Description

Frame:

Cypress Gothic Arch Greenhouse Framing Includes Cypress 4' OC prefabricated Gothic Arches, 2" x 2" purlins, 1" x 2" filler strips, 1" x 4" ridge boards, 2" x 4" end framing and ridge cap supports, and 1/2" exterior plywood gussets.
10-YEAR WARRANTY ON FRAMING

 Glazing:

• Clear 8mm Twinwall Polycarbonate - 81% Light Transmission
• Eave Glazing: 8mm clear twin wall, no drip polycarbonate. (10 yr. warranty)

Door :

• 1 ea 42" x 6' - 6" A.D.A. compliant single swing door(s) with lever action lock and key.
• Doors are three-quarter tempered glass, designed to open toward the outside of the greenhouse.

Sealed Engineering Drawings for Structural Design

• *Engineered stamped drawings are available for this structure.  If your county requires these for a building permit, please get in touch with our office.
• Suppose engineer-stamped drawings are required to obtain a building permit, not a load-rated structure. The final cost may be adjusted subject to Engineering evaluation based on local snow, wind, and seismic load criteria.

Ventilation

• 1 ea. 20"  Exhaust Fans
• 2 ea. 20" Motorized Shutters
• 1  ea. One-Speed Mechanical Thermostat

Heating:

• One ea. 45.000 BTU Gas heater. Modine Model HD45A Heater delivers 80% thermal efficiency in a small package. We are featuring an aluminized steel primary heat exchanger. Enclosed fan motors and all controls are mounted inside the cabinet for protection from airborne moisture and dust.
• It comes set up for LP gas, and Natural gas conversion is available.

Hanging Basket Rails

4 runs of 1-3/8" x 17 ga. Allied "Gatorshield" tubing running

Shade Cloth

•  Aluminet Shade Cloth 30% - 50% shade density, knitted shade fabric with reinforced edges and brass grommets. Aluminet shade cloth is excellent because it shades and reflects light. In the winter, the aluminum acts like a blanket and keeps the warmth inside the greenhouse. You can think of it as a thermos for your greenhouse.

Benches

•  1 Rows -3' W x 15' L Center Benches
• 2 Rows - 3' W x 18' L Side Benches

Mist Irrigation System

• This system waters your greenhouse automatically. This is an essential feature for those who travel. Mist Irrigation System includes a 24-hour program timer with day-skipper, electric solenoid control valve, gate valve, line strainer, mist heads, plus all PVC pipe fittings and accessories.

Emergency Lighting / Exit Signs / Fire Extinguisher:

• Emergency Lighting / Exit Signs / Fire Extinguisher also has emergency lights powered by a rechargeable battery. Emergency lights should come on when the power is interrupted for any reason.
• One Multi-purpose dry chemical A-B-C rated 10 lb. The fire extinguisher is charged with formulated siliconized dry chemical UL and is rated for fighting paper, wood, fabric, grease, flammable liquid, and electrical fires.

Shipping & Delivery

Shipping & Delivery

Not Available Online

Contact us for delivery options.
