W-Truss Houses |
|
|
| Click below image to see larger version |
 |
 |
 |
 |
| |
|
|
Shade with style! Our W-Truss shade structure has always combined strength with elegance. Now our new peak roof option allows you to add style to your garden center. It mirrors the look and feel of a greenhouse while increasing the expansive feeling of an outdoor retail space. Both roof options are still built on a frame that is one of the strongest retail shade structures in the industry. Why choose? Now you can have form and function in one structure. |
Very strong
Sturdy, horizontal truss allows for long spans between supports. Quick install
Easy shade attachment system provides
for quick installation and removal. Shade cloth
A variety of shade cloths are available
to provide the best environment. |
Specifications |
|
Standard W-Truss
Width/lengths: 20' x 20' blocks standard, custom trusses available.
Anchors: anchor bolts (concrete)
Vertical posts: 3" x 3" x 13' galvanized steel with base plate
Truss:2" x 2" square top and bottom chords, galvanized webbing
Cover:30-90% shade cloth
|
Peaked W-Truss
Width/lengths: 20' x 20' blocks standard
Anchors: anchor bolts (concrete)
Vertical posts: 3" x 3" x 13' galvanized steel with base plate
Truss:2" x 2" square top and bottom chords, galvanized webbing
Cover:30-90% shade cloth |

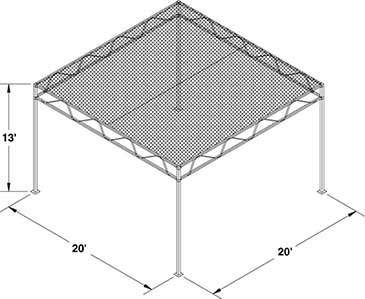

Standard Roof W-Truss
Complete Packages |
W-Truss complete packages include:
3" x 3" x 13' x 12 ga. vertical posts with 8" x 8" base plates in 20' x 20' blocks,
Hilti expansion anchor bolts, 20' galvanized truss members,
60% black knitted shade cloth with taped edges and grommets, 10" canopy ball bungee every 18", fittings, hardware, and assembly instructions.
Kit prices based on 20' x 40' or larger shade cloth panel sizes. Smaller panel sizes will result in higher prices. |
Package Price with 60% black shade******
|
| Model # |
Size |
Sq. Feet |
Price |
Buy Now |
| P01-SH-WT-2020 |
20' x 20'
|
400 |
$1,950 |
|
| P01-SH-WT-2040 |
20' x 40' |
800 |
$3,270 |
|
| P01-SH-WT-2060 |
20' x 60' |
1,200 |
$4,590 |
|
| P01-SH-WT-2080 |
20' x 80' |
1,600 |
$5,910 |
|
| P01-SH-WT-20100 |
20' x 100' |
2,000 |
$7,235 |
|
| |
| P01-SH-WT-4040 |
40' x 40' |
1,600 |
$5,480 |
|
| P01-SH-WT-4060 |
40' x 60' |
2,400 |
$7,670 |
|
| P01-SH-WT-4080 |
40' x 80' |
3,200 |
$9,860 |
|
| P01-SH-WT-40100 |
40' x 100' |
4,000 |
$12,080 |
|
| |
| P01-SH-WT-6060 |
60' x 60' |
3,600 |
$10,740 |
|
| P01-SH-WT-6080 |
60' x 80' |
4,800 |
$13,800 |
|
| P01-SH-WT-60100 |
60' x 100' |
6,000 |
$16,910 |
|
| |
| P01-SH-WT-8080 |
80' x 80' |
6,400 |
$17,750 |
|
| P01-SH-WT-80100 |
80' x 100' |
8,000 |
$21,735 |
|
| |
| P01-SH-WT-100100 |
100' x 100' |
10,000 |
$26,565 |
|
| P01-SH-WT-100200 |
100' x 200' |
1 20,000 |
$50,710 |
|
|

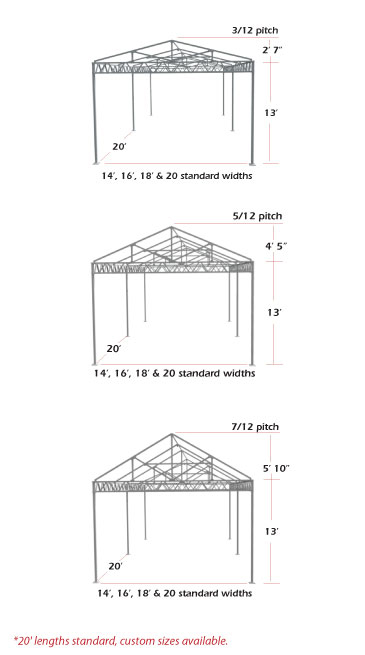

Peaked Roof W-Truss |
Package Price with 60% black shade******
Pricing based on 5/12 pitch roof |
| Model # |
Size |
Sq. Feet |
Price |
Buy Now |
| P01-SH-PWT-2020 |
20' x 20'
|
400 |
$2,690 |
|
| P01-SH-PWT-2040 |
20' x 40' |
800 |
$4,515 |
|
| P01-SH-PWT-2060 |
20' x 60' |
1,200 |
$6,335 |
|
| P01-SH-PWT-2080 |
20' x 80' |
1,600 |
$8,155 |
|
| P01-SH-PWT-20100 |
20' x 100' |
2,000 |
$9,995 |
|
| |
| P01-SH-PWT-4040 |
40' x 40' |
1,600 |
$7,970 |
|
| P01-SH-PWT-4060 |
40' x 60' |
2,400 |
$11,150 |
|
| P01-SH-PWT-4080 |
40' x 80' |
3,200 |
$14,355 |
|
| P01-SH-PWT-40100 |
40' x 100' |
4,000 |
$17,550 |
|
| |
| P01-SH-PWT-6060 |
60' x 60' |
3,600 |
$15,970 |
|
| P01-SH-PWT-6080 |
60' x 80' |
4,800 |
$20,515 |
|
| P01-SH-PWT-60100 |
60' x 100' |
6,000 |
$25,110 |
|
| |
| P01-SH-PWT-8080 |
80' x 80' |
6,400 |
$26,695 |
|
| P01-SH-PWT-80100 |
80' x 100' |
8,000 |
$32,670 |
|
| |
| P01-SH-PWT-100100 |
100' x 100' |
10,000 |
$40,230 |
|
| P01-SH-PWT-100200 |
100' x 200' |
1 20,000 |
$76,750 |
|
|
|
