Multiwall Polycarbonate

 Greenhouse Covering

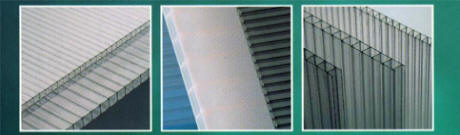

polycarbonate glazing system
multiwall polycarbonate panels

The Perfect, Lightweight, Cost Efficient Glazing for Your Greenhouse If you are looking for a high quality polycarbonate sheet which features the latest in product technology and which comes with the kind of personal service you need, call US Our polycarbonate sheets are an effective alternative to traditional glazing in a wide variety of applications including: Commercial Greenhouses Home Greenhouses, Office Partitions, Vertical Glazing, Industrial Roofing, Pool Enclosures, Patio Covering, Window Replacement, Skylights, Domes, Shelters, Canopies, Sheds, Walkways, Carports, Sunrooms


  • The perfect glazing alternative for any greenhouse publication, translates its many unique features into cost saving benefits.

  • Lightweight, and virtually unbreakable.

  • Features a proprietary surface treatment which provides resistance against degradation caused by UV radiation in sunlight.

  • Carries a Ten Year Limited Warranty* against discoloration, loss of light transmission and/or loss of strength due to weathering.

  • Can be used for: Skylights/Overhead Glazing, Atriums, Canopies and Walkways Industrial Roofs and Sidewalls, Sunroom, Swimming Pool and Conservatory Roofing, Shopping Center Roofing, Railway/Metro Station, Football Stadium Roofing

  • Most thickness available in Clear, Opal, or Bronze.

  • 4' & 6' Widths are standard sizes.

Technical Specifications

multiwall polycarbonate panels Storage & installation guide (PDF)
multiwall polycarbonate panels Multiwall Polycarbonate Specifications (PDF)
multiwall polycarbonate panels Polycarbonate Accessories (PDF)


Multiwall Polycarbonate

Multi-wall polycarbonate twin wall sheet produced in 4mm, 6mm, 8 mm and 10 mm. These products provide high light transmission, good thermal insulation, high temperature resistance, high impact strength (hail resistance) and can have our min-dew coating which eliminates condensation and water droplets.



size Weight
Ibs/sq.ft
Light Transmission Thermal
Insulation
Clear Opal Bronze

4mm Twinwall .164 82% 60% 25% R-1.58
6mm Twinwall .246 80% 60% 25% R-1.77
8mm Twinwall .307 80% 60% 25% R-1.89
10mm Twinwall .375 80% 55% 25% R-1.89

Multi-wall polycarbonate triple wall sheet thicknesses are 6mm, 8 mm, 10 mm, 16 mm and 20 mm and provide even greater thermal insulation properties than twin wall product. All triple wall products provide high light transmission, good thermal insulation, high temperature resistance, high impact strength (hail resistance) and can have our min-dew coating which eliminates condensation and water droplets.


size Weight
Ibs/sq.ft
Light Transmission Thermal
Insulation
Clear Opal Bronze





6mm Triplewall .264 75% 60% 23% R-1.67
8mm  Triplewall .328 75% 60% 23% R-1.89
10mm  Triplewall .348 75% 55% 23% R-2.10
16mm  Triplewall .553 72% 40% - R-2.58
25mm  Triplewal .635 72% 40% - R-2.58




Five Wall polycarbonate sheet is available in gauges from 16mm, 20 mm and 25 mm. It has a significant improvement in thermal insulation properties over the twin and triple wall while only having a minimal drop in light transmission. While these higher end products are not as frequently used in Horticultural applications, they are available for those unique applications where superior insulation properties are required at a minimal upcharge.



size Weight
Ibs/sq.ft
Light Transmission Thermal
Insulation
Clear Opal Bronze







16mm Fivewall .573 62% 40% 25% R-2.99
20 mm  Fivewall .635 60% 40% - R-3.15
25 mm  Fivewall .696 60% 25% 20% R-3.79




Polycarbonate Accessories

Aluminum H-Profile

Polycarbonate Accessories offer Aluminum Tape ,V Porous Tape, Washers, Sealant, Polycarbonate U-Profile, H-Profile, Polycarbonate Snap-H Profile, Snap-U Profile, Polycarbonate Ridge Profile, Aluminum H-Profile, Aluminum U-Profile, Screw .

Select this link to see Polycarbonate Accessories
