Chemilizer Injector HN55

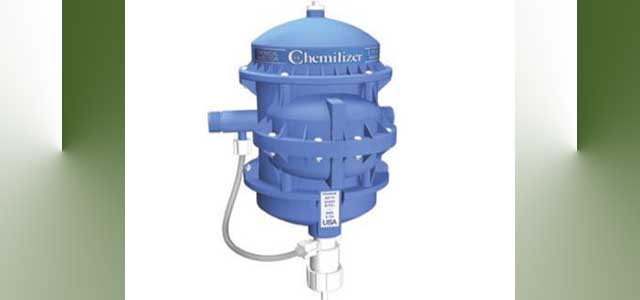

Chemilizer Injector HN55

Description

HN55-Chemilizer Injector can be used with a wide range of chemicals and fertilizers to reduce your cost, HN55-Chemilizer Injector is designed as a two-part system comprised of a non-electric water motor and chemical pump. The non-electric water motor functions on demand with water flow. No chemicals enter the water motor. A fixed diaphragm replaces a moving piston used by our competitor as the driving mechanism of the water motor. Inserted into the bottom of the water motor is a positive displacement chemical pump,

HN55-Chemilizer Injector provides consistent accuracy longer. The superior product design uses a more chemical durable rubber diaphragm instead of a plastic piston. As a result, HN55-Chemilizer Injector is built to last with higher product reliability and longer lifetime as a result of field-proven designs and quality dedication. Grower's Solution is so confident of HN55-Chemilizer Injector injectors that we provide the best, most comprehensive 2 year warranty in the industry.

Installation kits and non-electric injectors make HP55-Chemilizer Injector is an easy-to-set-up product. HP55-Chemilizer Injector is also easier to maintain with its two-part system that allows for easy removal and maintenance.


HN55-Chemilizer Injector We Recommend and use in the greenhouses ****


Select this link for FAQS

Specifications

  • Chemical flow 1:100, 2:100, 1:128, 2:128, 1:250

  • Pressure 2 PSI to 80 PSI, 1.38 BAR - 5.51 BAR

  • Min/Max flow 1-720 GPH (.167-12 GPM)

  • Size 11" x 8 1/2" x 10" (H x W x D)

  • Weight 6 3/4 lbs

Warranty

Chemilizer Products, Inc. provides the most comprehensive warranty in the industry! We provide a 2-year warranty on the water motor – a warranty that provides for more than just defects in materials and manufacturing!


Select this link To see complete Warranty Policy

HN55 Chemilizer Injector Price

#Item RatioPriceBuy Now
C02-HN55 11001:100 $231 shopping cart
C02-HN55 11281:128$231 shopping cart
C02-HN55 12501:250 $245 shopping cart
C02-HN55 15001:500$275 shopping cart
C02-HN55 21002:100 $231 shopping cart
C02-HN55 21282:128$231 shopping cart
Florida deliveries subject to Florida sales tax

Ratio 1:128 oz. fixed 2:128 ox. fixed 1:500 oz. fixed 1:250 oz. fixed 1:100 oz. fixed 2:100 oz. fixed
Percent .78 1.56 .2 .4 1.0 2.0
Min/Max Pressure 2-80 psi 2-80 psi 2-80 psi 2-80 psi 2-80 psi 2-80 psi
PH Range 2-12 2-12 2-12 2-12 2-12 2-12
Chemicals Pharmaceuticals & Medications, Fertilizers, Fungicides, Pesticides, Chlorine, Chlorine Dioxide, Peroxide, Soaps, Detergents, Sanitizers, Waxes, Enzymes, Lubricants, Surfactants and others
Legend: oz = ounces, psi = pounds per square inch, v = viton

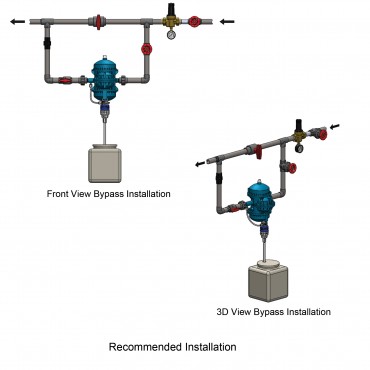

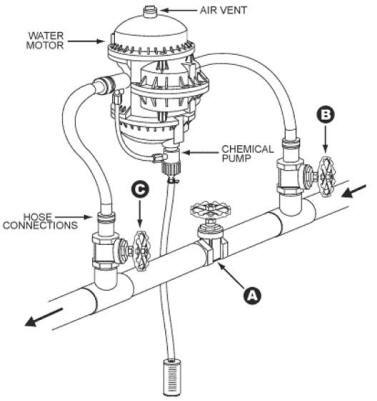

HN55 installation (part one)

Starting the Unit 1. Be sure chemical pump is locked into the bottom of the water motor. (1/4 turn to the right) 2. Open valves (B) and (C) 3. Close valve (A) 4. Open air vent until all trapped air is released Stopping the Unit 1. Open valve (A), then close valves (B) and (C)

Chemilizer Injector HN55 Installation (part one)

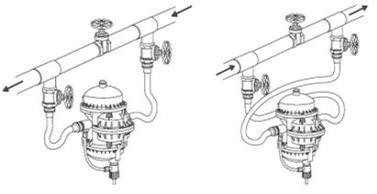

Chemilizer HN55 installation (part two)

NOTE: Do not hook water motor up backward. Water must flow through motor from right to left. If necessary, crisscross hoses to accommodate setup. Note: Alternate mounting below pipe.

Chemilizer Injector HN55 Installation (part two)
