Specifications
21' Wide
Width: 21'-0"
Length: starting
at 18' with increments of 6'
Sidewall height:
6', 7' or 8'
Height to apex:
15'-10"
Frame spacing:
6'
Truss height:
Approx. 8'-6"
Truss System:
5-part truss made of 1" and 1.66" galvanized tubes
Frame: 2" o.d.
14-gauge galvanized steel tubing
Structural purlins:
(3) runs of 2" x 14 ga. galvanized steel tube

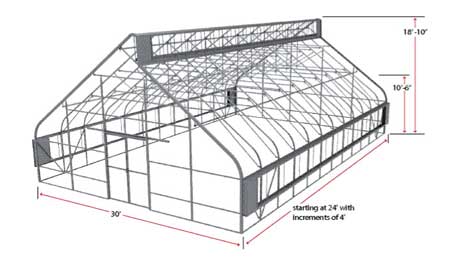

30' Wide
Width: 30'-0"
Length: starting
at 24' with increments of 4'
Sidewall height:
6'
Height to apex:
18'-10" (6-for sidewall)
Frame spacing:
4'
Truss height:
Approx. 10'-6"
Truss System:
7-part truss made of 1" and 1.66" galvanized tubes
Frame: 2" o.d.
14-gauge galvanized steel tubing
Structural purlins:
(3) runs of 2" x 14 ga. galvanized steel tube


|
