Commercial Nylon Windlock Rolling Sheet Door- 3652

Steel Roll Up Greenhouse Door - 3652

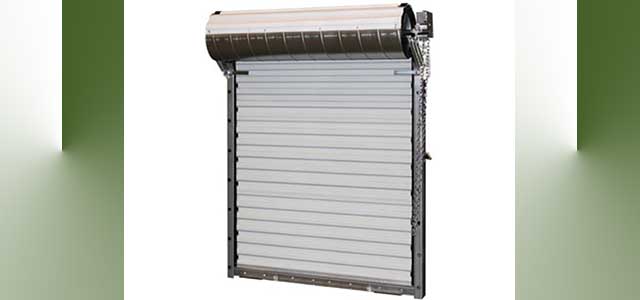

Model 3652 is our new nylon windlock certified wind load rated roll up sheet door. The nylon windlock will offer an easier installation process with a more forgiving guide set, as well as a smoother and quieter operation.

Door Description

Designed and tested to meet wind load requirements of the International Building Code and Florida Building Code (FL14425)
Utilizes 12” drum wheel
Maximum opening size of 18’ wide x 20 ’ high (360 sq.ft.)
Push-up, hand chain and electric operations
PSF Ratings: +36 PSF and -40 PSF for opening widths of 12’
Ratings vary for other opening widths; consult factory

Back to Greenhouse Door

Options
Pricing
Specifications
Support
Accessories

Options

Insulation Series 3652 I (R-value 4)

Header seal

Top draft stop

Header seal

Side draft stop

Chain hoist 5.7:1 reduction

Vision panels (17”x 5”)

Hood

Steel mounting plates

Stainless steel mini latch

Pricing

Model #	Description	Weight	Price	Buy Now
--	--	--	Call for Price	Call to Order

Specifications

Greenhouse Door Curtain System
- 26-gauge galvanized corrugated steel
- Grade 80 galvanized steel
- 20+ standard colors (special colors upon request for a nominal upcharge)
- Super Durable polyester paint coatings, which are corrosion resistant
- Wash coat over primer interior side
- 40-year film integrity and 25-year no chalk/fade warranty
- Flexible nylon wear strips
- Nylon windlock
Door Bottom Bar
- 24 gauge acrylic-coated galvalumed roll formed steel
- 2” x 1 ½” galvanized angle
- Bulb astragal (Durometer 75)
- Stainless steel nuts and bolts
Door Axle/Torque Tube
- 1-5/16” O.D. steel axle, 14-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 16-gauge, 9 ½” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Guides
- 14 gauge galvanized steel guides
- Universal jamb mount
- Vinyl guide wear strip
- Bolt on head stop ¼” plate steel
- Pre-punched for lock and attachment bolts
- 2” guide depth
Door Hardware
- Bottom bar mounted 10 gauge slide locks - 2 per door
- Bottom bar mounted 16 gauge step plate - 2 per door
- 12 gauge door mounting brackets
- 1-5/16” tension holding device
