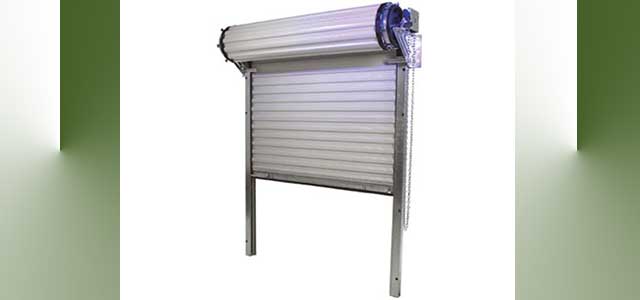

Commercial Steel Roll Up Greenhouse Door - 3400

Steel Roll Up Greenhouse Door - 3400/3401

The Model 3400 is our Miami-Dade County approved wind load rated door.

Door Description

Designed to meet stringent building codes in Miami-Dade County
Utilizes 12” drum wheel
Maximum opening size of 12’ wide x 18’ high (216 sq.ft.)
Push-up, hand chain and electric operations
PSF Ratings: +43 PSF and -49 PSF

Options
Pricing
Specifications
Support
Accessories

Options

Insulation Series 3400 I (R-value 4)

Header seal

Top draft stop

Header seal

Side draft stop

Side draft stop

Chain hoist 5.7:1 reduction

Hood

Steel mounting plates

Stainless steel mini latch

Pricing

Model #	Description	Weight	Price	Buy Now
--	--	--	Call for Price

Specifications

Greenhouse Door Curtain System
- 26-gauge galvanized corrugated steel
- Grade 80 galvanized steel
- Available in white only
- Super Durable polyester paint coatings, which are corrosion resistant
- Wash coat over primer interior side
- 40-year film integrity and 25-year no chalk/fade warranty
- Flexible nylon wear strips
Door Bottom Bar
- 24 gauge acrylic-coated galvalumed roll formed steel
- 2” x 1 ½” galvanized angle
- Bulb astragal (Durometer 75)
- Stainless steel nuts and bolts
Door Axle/Torque Tube
- 1-5/16” O.D. steel axle, 14-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 16-gauge, 12” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Guides
- 12 gauge galvanized steel guide, with 11 gauge windlock bar spot welded guide
- Universal jamb mount
- Vinyl guide wear strip
- Bolt on head stop ¼” plate steel
- Pre-punched for lock and attachment bolts
- 2-7/8” guide depth
Door Hardware
- Bottom bar mounted 10 gauge slide locks - 2 per door
- Bottom bar mounted 16 gauge step plate - 2 per door
- 12 gauge door mounting brackets
- 1-5/16” tension holding device
