Commercial Steel Roll Up Greenhouse Door - 1950HD

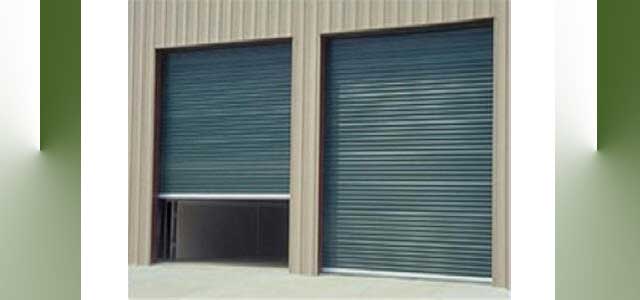

Steel Roll Up Greenhouse Door - 2000/2001

Model 2000 Standard Commercial Sheet Roll Up Door offers special features for commercial installations. Model 2000 has the deepest guide engagement in the industry and universal fastening guides. With the Model 2000's durability and low maintenance, this door is sure to have an unequaled quality and value.

Door Description

Utilizes 12” drum wheel
Maximum opening size of 12’wide x 18’ high (216 sq.ft.)
Push-up, hand chain and electric operations

Back to Greenhouse Door

Options
Pricing
Specifications
Support
Accessories

Options

Insulation Series 2000 I (R-value 4)

Header seal

Top draft stop/p>
Header seal

Side draft stop

Chain hoist 5.7:1 reduction

Vision panels (17”x 5”)

Hood

Steel mounting plates

Stainless steel mini latch

Pricing

Model #	Description	Weight	Price	Buy Now
--	--	--	Call for Price	Call to Order

Specifications

Greenhouse Door Curtain System
- 26-gauge galvanized corrugated steel
- Grade 80 galvanized steel
- 20 standard colors (special colors upon request for a nominal upcharge
- Super Durable polyester paint coatings, which are corrosion resistant
- Wash coat over primer interior side
- 40-year film integrity warranty — up to 25-year chalk and fade
- Flexible nylon wear strips
Door Bottom Bar
- 1” O.D. steel axle, 14-gauge
- 16-gauge, 9 ½” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Door Axle/Torque Tube
- 1-5/16” O.D. steel axle, 14-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 16-gauge, 9 ½” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Guides
- 1-5/16” O.D. steel axle, 14-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 16-gauge, 12” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum bolts
- 26 gauge spiral torque tubing that houses axle assembly
Door Hardware
- Bottom bar mounted 10 gauge slide locks - 2 per door
- Bottom bar mounted 16 gauge step plate - 2 per door
- 12 gauge door mounting brackets
- 1-5/16” tension holding device
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

N/A
