Commercial Steel Roll Up Greenhouse Door - 1000/1100| Gothic Arch Greenhouses

Commercial Steel Roll Up Greenhouse Door - 1000/1100

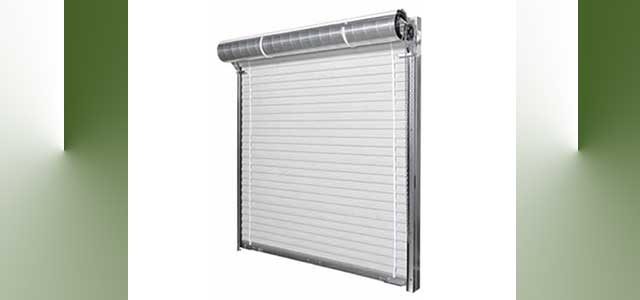

The Commercial Steel Roll Up Door 1000 door is our newest offering for ease of installation. The Pre-Assembled Industrial Door (PAID) offers a push-up operation that comes with brackets and tensioner pre-assembled. The reduced drive chain hoist operation is delivered with brackets, tension, gears and chain drive pre-assembled.

Model 1100 is the windload rated version of the Model 1000. FL#12765.1 (to 8'-8" wide) and FL#12765.2 (to 10'-0" wide)

Door Description

Pre-assembled for time and money savings

Utilizes 9 ½” diameter drum wheel
Maximum opening size of 12’ wide x 14’ high (168 sq.ft.)
Push-up, hand chain and internal electric operations
Reduced drive chain hoist is right hand only

Back to Greenhouse Door

Options
Pricing
Specifications
Support
Accessories

Options

Insulation Series 1000I (R-value 4)

Top draft stop

Side draft stop

Header seal

Chain hoist 4:1 reduction

Internal electric operator

Hood

Stainless steel mini latch

Pricing

Model #	Description	Weight	Price	Buy Now
--	--	--	Call for Price	Call to Order

Specifications

Greenhouse Door Curtain System
- 26-gauge galvanized corrugated steel
- Grade 80 steel
- 20 standard colors (special colors upon request for a nominal upcharge)
- Super Durable Polyester paint coatings, which are corrosion resistant
- Wash coat over primer interior side
- 40-year film integrity warranty — up to 25-year chalk and fade
- Flexible nylon wear strips
Door Bottom Bar
- 24 gauge acrylic-coated galvalumed roll formed steel
- 2” x 1 ½” galvanized angle
- Bulb astragal (Durometer 75)
- Stainless steel bolts
Door Axle/Torque Tube
- 1” O.D. steel axle, 12-gauge
- Oil tempered torsion springs conforming to ASTM A229
- 18-gauge, 9 ½” diameter galvanized drum
- Low friction, grease-filled steel ball bearings staked in each drum
- 26 gauge spiral torque tubing that houses axle assembly
Guides
- 16 gauge galvanized
- Vinyl guide wear strip
- Bolt on head stop ¼” thick steel
- 2 ¼” guide depth
- Pre-punched for lock
- Universal jamb mount
Door Hardware
- Bottom bar mounted 12 gauge slide locks - 2 per door
- Bottom bar mounted 16 gauge step plate - 2 per door
- 12 gauge door mounting brackets
- ratchet tensioner device
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5328

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories

Recommended Accessories

N/A
