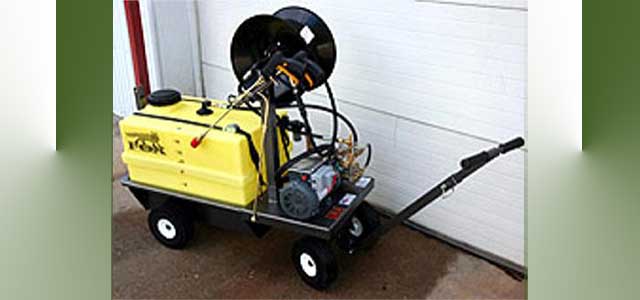

F-800 Greenhouse Sprayers

The F-800 is highly maneuverable with four wheels and a narrow front steering mechanism, which allows for 90 degree aisle turns. Easy change tongues make hand maneuvering a snap and small vehicle transporting possible. 10 inch diameter easy ride tires smooth the bumps on uneven ground.

A new tapered bottom tank allows complete drainage. A 1/2 inch additional drain is provided. Tank is removable for easy cleaning or substitution of an auxiliary tank, for alternate uses of solutions.

The system provides continuous "high action" re-circulating tank agitation. A "Chem Saver" tank shutoff valve, allows reclaiming of excess chemicals and permits cleaning of the hose and pump, with chemical still in the tank. Only top quality Cat pumps are used. Honda or Briggs & Stratton gasoline engines are available.

Back

Options
Pricing
Specifications
Support
Accessories

Options

Pricing

Model #	Description	Price	Buy Now
S06-GS-F800E	120V.,1.5HP Eclectic Motor,35 Gal Tank	5558
S06-GS-F800G	4HP , Honda Engine, 35 Gal Tank	5779

Specifications
- 800 PSI of pressure
- 3 GPM Flow
- 100 ft. of hose (standard)
- 200 ft. reel capacity of 3/8" hose
- CAT pump with 3 ceramic plungers
- 35 gallon complete drain tank
- Quick adjust pressure control
- Fluid filled gauge
- 2 guns for misting & drenching
- Quick couple fittings for fast & easy maintenance
- Bypass pump protection
- 22" cart clearance for narrow spaces
- Honda or Briggs and Stratton gas engine are available
DESIGN FEATURES
- Fits 22" aisle
- 10" "No Flat" tires
- Fresh water back flush for easy clean out
- Highly maneuverable
- 4 wheels with narrow front steering allows for 90 degree aisle turn
- "High Action" recirculating tank agitation
- Chemical saver tank shutoff valve
- Tapered bottom tank for drainability, 1/2" additional drain is provided
Drench and Spray Uses:
- Sanitation and disinfecting of floors, benches, and pots
- Tree Spraying
- Lawn Spraying
- Growth Regulators
- Foliar pesticide application
Support

If you need additional technical support or have a question, we can be reached 8:30 AM to 5:30 PM central time, Monday through Friday at:

Phone: 800-531-4769 (toll-free US and Canada) or 251-471-5238

FAX: 251-471-5465

E-mail: info@gothicarchgreenhouses.net
Accessories
- 3 piece nozzle for high or low misting
- 1 drenching water breaker screen nozzle
- 2 - 18" wands and one 12" wand
- 1 - 12" curved (hook) extension for hanging baskets
- Back flush connector for easy cleaning
- 0 degree to 15 degree pressure nozzles
