Shade Greenhouses |
|
 |
| Click below image to see larger version |
 |
 |
 |
 |
|
****This Greenhouse is required 10,000 Sq foot Minimum |
The placement of a very thin screen reduces the entrance of pests and diseases and also creates a drop in pressure of the air passing through the screen which reduces plant transpiration. The physical exclusion of the insects from the greenhouse reduces the incidence of direct crop damage and also of insect-transmitted virus diseases. There is also an independent roof layer of polyethylene film which keeps the rains out, while allowing maximum passive ventilation.
|
The AT shade

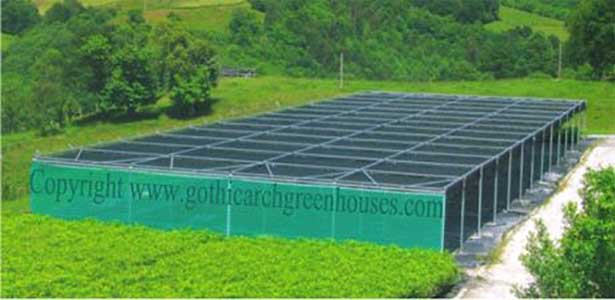

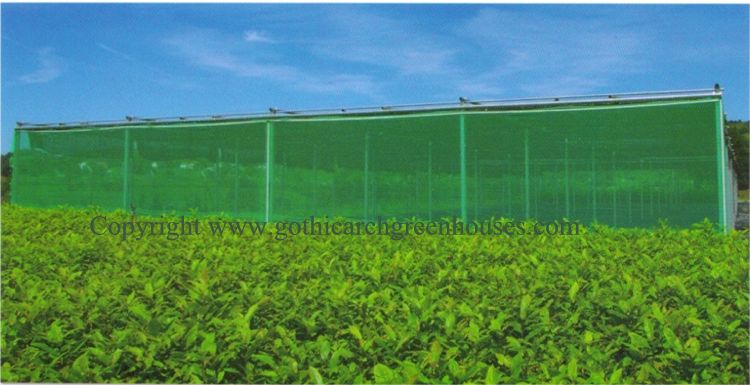

Greenhouses are structures with flat roof, designed to protect sensitive vegetable plants from the sun which don't need the protection that is contributed by a conventional greenhouse.
Thanks to their simplicity and resistance, the assembly and installation is an easy and economical task. There is the possibility to install an automatic system, controlled by lux + Watt/m 2 , that is able to move the covering nets. In this way providing the amount of sunlight that is needed by the plant
The modules of 16.4 Ft x 16.4 Ft are ideal to create shade greenhouse whose dimensions adapt to different necessities. |
Specifications |
Galvanized structure according to the UNE 36130 Standards
Pillars: 13.1 Ft x 13.1 Ft , or 16.4 Ft x 16.4 F
Height: 9.84 Ft,11.48Ft, 13.1 Ft
Door: 9.84 Ft x 13.1 Ft
Lateral Profiles with Clip AT system for fixing the net
Reinforcements at the beginning of the pillar's lines
Option: Automatic and motorized system for opening
and closing
|
Covering |
Shading mesh colored black or green
Anti - plague mesh
Anti - trip mesh |

|
|
