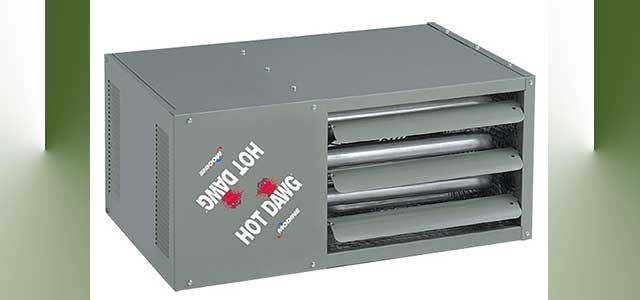

Greenhouse Hot Dawg Heater |
|
 |
|
The Hot Dawg
Heater may be installed in residential or commercial
Greenhouses or garage applications just one inch below the ceiling. The superior quality matched with the following features makes the Hot Dawg unit heater an easy choice for a variety of applications.
|
HD Features
|
Uses natural or propane gas. Certified for residential, commercial and industrial use. Low-profile design and neutral color to blend in with decor. Lightweight, easily installs 1” from ceiling with only 2 angle brackets (included). Install quickly and easily with field wiring connections and knockouts for quick access to gas and electricity. Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe. Right or left hand controls available on all 30-75 units. Gas, electrical and flue connections can be changed by simply flipping the Hot Dawg over. Permanently-lubricated motor for trouble-free dependability. Quiet operation. Full 10-year warranty on heat exchanger. |
|
|
HD Heater Price |
| Stock # |
Input BTU's |
Output BTU's |
Application |
Vent Size |
Price |
Buy Now |
|
M04-HD 30A |
30.000 |
24.000 |
Up to 250 SF |
Requires 3" vent
pipe |
$580 |
 |
| M04-HD 45A |
45.000 |
36.000 |
Up to 350 SF |
Requires 3" vent pipe |
$595 |
|
|
M04-HD 60A |
60.000 |
48.000 |
Up to 550 SF |
Requires 3" vent pipe |
$655 |
|
| M04-HD 75A |
75.000 |
60.000 |
Up to 650 SF |
Requires 3" vent pipe |
$685 |
|
|
M04-HD 100A |
100.000 |
80.000 |
Up to1000 SF |
Requires 4" vent pipe |
$785 |
|
| A07-HD 125A |
125.000 |
100.000 |
Up to1200 SF |
Requires 4" vent pipe |
$845 |
|
|
Modine Hot Dawg Heater
Information Center |
|
Click below image to see larger version |
|
 |
 |
|
Select below link to download PDF more information |
|
Manual Residential Owners Manual
(PDF) |
|
HD Heater Dimensions, Diagrams and Specifications.(PDF) |
|
FAQs About the Hot Dawg(PDF) |
|
HDS Heater Dimensions, Diagrams and Specifications. (PDF) |
|
|
Hot Dawg Separated Combustion Heater |
|
Same features as Model HD, except adds these features:
The separated combustion Hot Dawg draws its
combustion air from outside the work space,
ensuring the unit always has plenty of fresh, clean
air to breathe.
The fresh-air supply reduces common concerns about dusty, dirty or humid applications, providing greater durability and reduced maintenance. Drawing combustion air from the outside increases overall heating efficiency. External gas connections. |
HDS Heater Price |
| Stock # |
Input BTU's |
Output BTU's |
Application |
Vent Size |
Price |
Buy Now |
|
M04-HDS 30A |
30.000 |
24.000 |
Up to 250 SF |
Requires 3" vent
pipe |
$895 |
|
| M04-HDS 45A |
45.000 |
36.000 |
Up to 350 SF |
Requires 3" vent pipe |
$945 |
|
| M04-HDS 60A |
60.000 |
48.000 |
Up to 550 SF |
Requires 3" vent pipe |
$1100 |
|
| M04-HDS 75A |
75.000 |
60.000 |
Up to 650 SF |
Requires 3" vent pipe |
$1145 |
|
| M04-HDS 100A |
100.000 |
80.000 |
Up to1000 SF |
Requires 4" vent pipe |
$1440 |
|
| M04-HDS 125A |
125.000 |
100.000 |
Up to1200 SF |
Requires 4" vent pipe |
$1490 |
|
|
|
|
|
|
 |
If you need to purchase a greenhouse heater, this
heat-loss Btu calculator will help you decide on the size of heater needed for your greenhouse.
First, you need know the Surface
Area of your greenhouse. Click the following link to use our
Greenhouse Surface Area Calculators
to find the total square feet of exposed surface area of your greenhouse.
Then click the following link to use our
Greenhouse Heater BTU
Calculator
to find out minimum heater BTU rating to keep your greenhouse at
an inside desired temperature during the winter time of year.
We hope this prove useful in helping to
determine the size heater for your greenhouse. Let us hear
from you for additional assistance. Call 800-531-4769.
|
