CORRUGATED POLYCARBONATE

Greca Corrugated Polycarbonate

Green-Lite is one of the leading materials of choice for greenhouse roofing due to its unique combination of characteristics. It is a high quality, lightweight, rigid corrugated polycarbonate sheet, with excellent impact resistance, superior clarity, versatility, and weather resistance. Green-Lite contains UV inhibitors, which prevent degradation and yellowing of the material, and crops under the sheet are protected from the harmful rays of the sun.



Condensation Control: All Green-Lite panels are treated with a factory applied condensation control which causes water to spread into a thin sheet rather than form into droplets. This built-in condensation control eliminates condensation, while retaining its high level of transparency.



Load Information

Recommended Purlin Distance

   Roof   36"

   Wall   48"

Bending Radii

Can be readily cold formed. Minimum bending radius is 13 feet.



Installation

Cutting - Cut Green-Lite corrugated sheet with shears, razor knife, or circular saw with fine tooth blade. Make sure the sheet is held securely in place with cutting to avoid vibrations and or surface streaks.

Drilling - It is important to allow for thermal expansion and contraction when drilling holes. Hole diameter should be drilled 5/64" larger than the diameter of the fastener.

Fastening - Fastening should be secured without excessive tension which would deform the corrugated sheet. In roofing applications, fastening is best through the crest of the material. For side walls, fastening would be through the crest of the mater

Specifications

Width: 50" providing 48" coverage & 74" providing 72" coverage

Length: Any length. Cut to specifications up to 39'

Crating Charge: $9.00 per linear foot

Minimum Crating Charge: $42.00

Freight: Orders over 5,000 square foot prepaid freight Continental U.S.





Color Width Price per SF
Clear 50" $ 1.04
Opal 50" $ 1.13
Bronze 50" $ 1.13



Dynaglas Corrugated Polycarbonate

DYNAGLAS is available for any commercial greenhouse application in multiple tints, including clear, SolarSoft™, white/opal, and solar gray.  DYNAGLAS  polycarbonate sheets offer all the benefits of polycarbonate glazing, such as high impact resistance, excellent durability, and 99.9% UV blocking.  DYNAGLAS PLUS features built-in condensate control that carries a 10-year warranty.

 In general, polycarbonate is inherently susceptible to condensate formation, especially when used to cover totally enclosed environments. DynaGlas Plus is made with an exclusive manufacturing process that results in the industry's only 10-year condensate control warranty. Because effective condensate control is such a critical need for greenhouse growers, the "Plus" condensate control feature is now built-in to every DynaGlas product.



Features at a Glance

-Up to 92% light transmission (clear)

-Blocks out UV & far IR radiation

-Virtually unbreakable

-UV2 available ( UV protection on both sides)

-Flexible and easy to install

-Wide service temperature range - -40° F to +212° F (-40° C to +120° C)

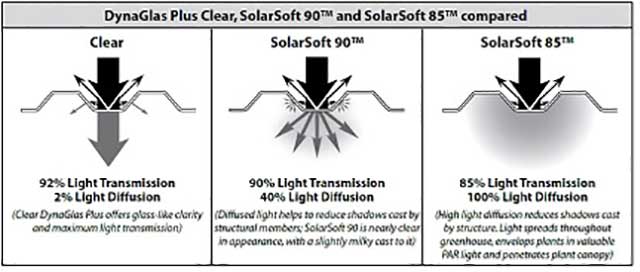

-Light-diffusing SolarSoft™ available

-49.6” and 73.6” widths available

-Retains its clarity and properties for many years

-10-year warranty against yellowing

-10-year condensation control warranty

-5-year hail warranty



DynaGlas Specifications and Installation Guide

DynaGlas Technical Specifications



Color Widths Price per SF
Clear 50" & 74" $ 1.13
SolarSoft 50" & 74" $ 1.13
Opal 50" & 74" $ 1.26
Solar Gray 50" & 74" $ 1.26



Accessories
Description Size Price
Horizontal Closure Strips 3'L

$ 1.25

Arch Contour Sealer 25'L $ 10.00
Woodmate Screw #10 x 1" 1" $ .15
Woodmate Screw # 10 x 1.5" 1.5" $ .15
Self-Drilling Screw # 12 x 1" 1" $ .15
Self-Drilling Screw # 12 x 1.5 1.5" $ .18
Washers - 1" diameters 1" dia. $ .15
Sealant 10.3 oz. $ 7.00
