Chemilizer Injector CP33

Description

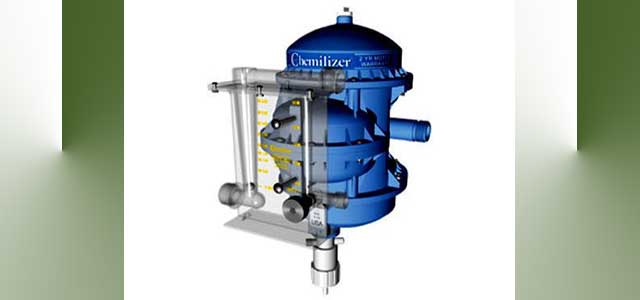

The CP33Chemilizer Injector is an adjustable liquid chemical injector; it injects a precise amount of chemical over a specific period of time.

The CP33Chemilizer Injector does not use electricity. It runs off of water flow, and can work with system flows from as low as 12 gallons per minute, to virtually unlimited water flow.

The versatility of theCP33 Chemilizer Injector is due to in part to its unique Injection Control Panel which provides a visual indicator of the injection volume allowing for dynamic adjustment to the injection volume.

 While the CP33Chemilizer Injector runs off of water flow, it only uses a portion of the overall flow for power.This limits pressure loss within the water system and also allows the treatment of very large volumes of water. In fact, the CP33Chemilizer Injector is exceptionally suited to injecting very small volumes of chemicals into large volumes of water!

Specifications

• System Water Flow:12 GPM - Unlimited

• Pressure Range: 4 to 80 psi

• Max Temp: 110 degrees F

• Pipe Size: 3/4" nht (National Hose Thread)

• Size 11"H x 8.5"W

• Weight: 8 lbs

CP33 Chemilizer Injector Price

Warranty

Chemilizer Products, Inc. provides the most comprehensive warranty in the industry! We provide a 2-year warranty on the water motor – a warranty that provides for more than just defects in materials and manufacturing!

Accurate and dependable injection - The CP33 utilizes a unique diaphragm driven water motor and a hardened, positive displacement chemical pump ensuring a high level of accuracy!

Durable and rugged performance - The CP33 is field-proven to be highly reliable and rugged. The CP33's diaphragm water motor is unaffected by small particles in the water flow, such as sand, which scar pistons damaging competitive injectors. Also, the CP33 injects chemicals into the water flow downstream of the injector. Chemicals never enter the water motor, precluding it from chemical damage.

Simple to install - Chemilizer injectors are simply installed using standard plumbing parts that are easily obtained from most hardware or plumbing stores.

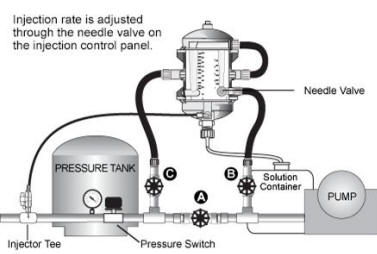

CP33 Chemilizer Injector Installation (ounces per hour)

The dual sided injection control panel allows a broad range of chemical delivery rates. The CP33 Chemilizer give the user the choice of ounces per gallon (which will meet most common needs for light industrial and residential flows) or gallons per hour ( for major industrial, municipality and agriculture installations).

A cap is included so that the rate side not in use can be capped. *Installation Placement -The CP33  Chemilizer injectors,should always be installed between the pump and the pressure switch. By doing this, there is always a consistent flow and pressure rate.

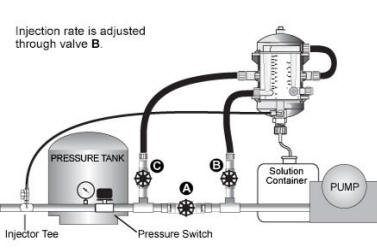

CP33 Chemilizer Injector  Installation (gallons per hour)

The dual sided injection control panel allows a broad range of chemical delivery rates. The ounces per gallon side of the injection control panel will meet most common needs for light industrial and residential flows.

The gallons per hour side is usually chosen for major industrial, municipality and agriculture installations. Depending on which side of the injection control panel you use, the other side is capped off (cap included). Installation Placement The CP injectors should always be installed between the pump and the pressure switch. By doing this, there is always a consistent flow and pressure rate.
