Greenhouse Fogger TurboXE -330


TurboXE -330-Greenhouse Fogger

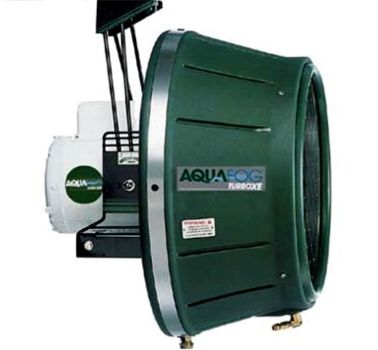

The smallest of the TurboXE fogging fans; Greenhouse Fogger TurboXE -330 is designed for the smallest spaces that need the high dependability in environments up to 100% RH, industrial quality and fogging capability of the Aquafog line. Well suited for areas between 16 to 30 feet in length, this model has a maximum fogging output of 5 GPH and can propel fog up to 20 feet. Unlike the larger four-bladed units, the XE-330 utilizes a two-blade fan, making it about 30% quieter than the XE-1000.


Aquafog Greenhouse 330 fan units target the small-space indoor applications that either requires; high industrial dependability and or high humidity levels up to and exceeding 100% RH (relative humidity). The nozzle-free fans can atomize ordinary water supplies into a very fine mist-like fog. Utilizing high-speed centrifugal force and powerful air flow, these units can propel a misty-fog stream up to 20 feet away. Used in small-scale commercial/Industrial applications to humidify air spaces


  • Standard-equipped with a Baldor wash-down-duty motor for strength and reliability in wet, harsh environments. TurboXE -330-Fan Unit

  • Uses ordinary water and power supply to produce high quality, high volume fog.

  • Fans can be stationary or equipped with oscillation.

  • Excellent for safe, effective chemical fogging. Used for liquid pesticide and fungicide application, insecticide use and foliar feedings.

  • Capable of continuous duty operation.

****XE-330 comes with a 1/2HP motor and a reduced CFM fan blade assembly.

****XE-330 Fans are standard equipped with a dark green housing and a dual voltage, white epoxy painted wash-down-duty™ (WDD) motor 115/230V, 1ph, 60Hz.

Also Included With Every Fan Unit

  • Adjustable-angle hanging bracket

  • Choice of visual flow meter panel with strainer

  • 12’ SJO indoor/outdoor, heavy-duty power cord

  • 20’ Poly-Flo water line tubing

  • 16’ water drainage line

  • 100% stainless steel hardware

  • Easy-to-follow operator’s manual


Aquafog units produce small particles averaging 25 microns in size and feature flow control for adjustment of the amount of liquid being fed to the fogging fan. At rates near full capacity, 95% of the particles produced are small enough to stay airborne.

Select this link to see Dimensions
Propulsion Distance 20'
Weight w/ Wash Down Motor 40lbs.
Max. Dry Fog Output 5 GPH
Energy Consumption 7.4 AMPS @ 120 V
Noise @ 10 ft. Distance 68 - 72 dB(A)
CFM Rating 1,940
Motor 1/6HP



Model # Description Electrical Price Buy Now
J03-TXE-330 TurboXE -330 Fan 115/230V-1Ph $1124 shopping cart
J03-XE-360 4 Turbo XE Oscillator 115Volt/230 60/50Hz 1Ph $366
J03-XE-361-bk* 4 Turbo XE Oscillator 115Volt/230 60/50Hz 1Ph $350
J03-H2-120 Humidistat Controls 115V 60/50Hz $388
J03-HG-H2-240 Humidistat Controls 230V 60/50Hz $365
J03-HG-H2-240-3ph Humidistat Controls 208-230V 60Hz 3 Ph $418
J03-TC-120 24-Hour Timer Controls 115V 60/50Hz $289
J03-TC-240 24-Hour Timer Controls 230V 60/50Hz $306
J03-PT Trippers / 1 pair   $4.10
J03-TH1-120 Thermostat Controls 115Volt 60/50Hz $273
J03-TH2-120 Thermostat Controls 115Volt 60/50Hz $304
J03-TH2-240 Thermostat Controls 230Volt 60/50Hz $322
J03-TH2-240-3ph Thermostat Controls 208-230V 60Hz 3 Ph $346
J03-2SC-120 Two-Stage Controls 115Volt 60/50Hz $565
J03-2SC-240 Two-Stage Controls 230Volt 60/50Hz $581
J03-XE-W Wall Mount Support   $82
J03-XE-C Ceiling Support   $63
J03-XE-110 Floor Stand   $378
J03-XE-100 Traveling Floor Stand   $216
Humidistat Controls 24-Hour Timer Controls Thermostat Controls
Humidistat Controls 24-Hour Timer Controls Thermostat Controls
Two-Stage Controls Turbo XE Oscillator Traveling Floor Stand
Two-Stage Controls Turbo XE Oscillator XE-100
