TurboXE -2000

Greenhouse Fogger

Greenhouse Fogger fans-TurboXE -2000

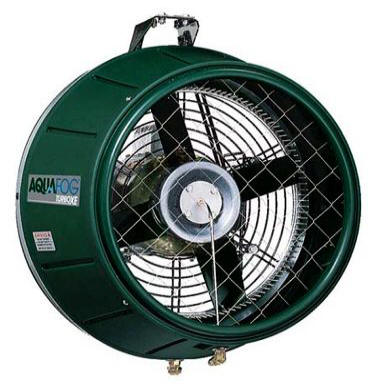

Our largest and most popular of the Turbo XE fogging fans, the XE-2000 (1HP, 60Hz) provides the best quality of fog and can propel its fog up to 35 feet. It has a maximum dry fog output of 30 GPH, but is fully adjustable even down to the lowest fogging levels. Generally, the XE-2000 is used for all large applications. Choose the 1/2 HP or or smaller units only if the XE-2000’s airflow would be too strong or if a quieter unit is desired. If you are not sure which TurboXE model is right for your application .


Description

The XE-2000 atomizing fan units can handle a variety of indoor/outdoor humidification or evaporative cooling applications. The nozzle-free fans can atomize ordinary water supplies into a very fine mist-like fog. Utilizing high-speed centrifugal force and powerful air flow, these units can propel a misty-fog stream up to 35 feet away. Units can be gravity-feed and are very resistant to acidic chemicals when used in fumigation applications. Widely used in mid-large scale commercial and industrial applications to humidify or evaporative cool large air spaces, but also ideal in spot cooling applications for example; employees working near incinerators, brick ovens, foundries etc..

Unlike other fog systems, TurboXE Foggers can accept ordinary water supplies, even well or pond water without the risk of clogging. The secret is in the nozzle-free, self-flushing atomization system that forces liquids through passageways in the fan blades, atomizing as the liquid exits the blades. In addition, TurboXE do not require high-pressure lines. Ordinary pressurized water lines are more than enough, and units can even be gravity-fed. By eliminating specialized pumps and filtering equipment, The XE-2000 saves time and reduces costs. The unique atomization process combined with the fan’s forced circulation provides high quality fog and uniform fog distribution


Features

  • Standard-equipped with a Baldor wash-down-duty motor for strength and reliability in wet, harsh environments. TurboXE -500-Fan Unit

  • Uses ordinary water and power supply to produce high quality, high volume fog.

  • Fans can be stationary or equipped with oscillation.

  • Excellent for safe, effective chemical fogging. Used for liquid pesticide and fungicide application, insecticide use and foliar feedings.

  • Capable of continuous duty operation.

*****XE-1000 Fans are standard-equipped with a dark teal housing and a dual voltage, white epoxy painted wash-down-duty™ (WDD) motor 115/230V, 1ph, 60Hz. See “Motor Option” below for other motor options.

Also Included With Every Fan Unit

  • Adjustable-angle hanging bracket

  • Choice of visual flow meter panel with strainer

  • 12’ SJO indoor/outdoor, heavy-duty power cord

  • 20’ Poly-Flo water line tubing

  • 16’ water drainage line

  • 100% stainless steel hardware

  • Easy-to-follow operator’s manual

Specifications

Aquafog units produce small particles averaging 25 microns in size and feature flow control for adjustment of the amount of liquid being fed to the fogging fan. At rates near full capacity, 95% of the particles produced are small enough to stay airborne.


Select this link to see Dimensions

Propulsion Distance 35'
Weight w/ Wash Down Motor 50lbs.* (Add 6 - 9 lbs. for Explosion-Proof * Subtract 4 lbs. for Three-Phase )
Max. Dry Fog Output 30 GPH
Energy Consumption 10.6 AMPS @ 120 V
Noise @ 10 ft. Distance 76 - 79 dB(A)
CFM Rating 3,260
Motor 1HP



Prices

Model # Description Electrical  Price Buy Now
J03-XE-2000 TurboXE -2000 Fan 115/230V-1Ph $1167 shopping carts
J03-XE-2000-3ph TurboXE -2000 Fan 230/460V-3Ph $1179 shopping carts
J03-XE2000-3Exp TurboXE 2000 Fan 230/460V-3Ph $1320 shopping carts
J03-H2-120 Humidistat Controls 115V 60/50Hz $388
J03-HG-H2-240 Humidistat Controls 230V 60/50Hz $365
J03-HG-H2-240-3ph Humidistat Controls 208-230V 60Hz 3 Ph $418
J03-TC-120 24-Hour Timer Controls 115V 60/50Hz $289
J03-TC-240 24-Hour Timer Controls 230V 60/50Hz $306
J03-PT Trippers / 1 pair   $4.10
J03-TH1-120 Thermostat Controls 115Volt 60/50Hz $273
J03-TH2-120 Thermostat Controls 115Volt 60/50Hz $304
J03-TH2-240 Thermostat Controls 230Volt 60/50Hz $322
J03-TH2-240-3ph Thermostat Controls 208-230V 60Hz 3 Ph $346
J03-2SC-120 Two-Stage Controls 115Volt 60/50Hz $565
J03-2SC-240 Two-Stage Controls 230Volt 60/50Hz $581
J03-XE-W Wall Mount Support   $82
J03-XE-C Ceiling Support   $63
J03-XE-110 Floor Stand   $378
J03-XE-100 Traveling Floor Stand   $216

Humidistat Controls 24-Hour Timer Controls Thermostat Controls
Humidistat Controls 24-Hour Timer Controls Thermostat Controls
Two-Stage Controls Turbo XE Oscillator Traveling Floor Stand
Two-Stage Controls Turbo XE Oscillator XE-100
