Bench Top Fine-mist Humidifier

Greenhouse Fogger


Bench Top Fine-mist Humidifier-Greenhouse Fogger



Description

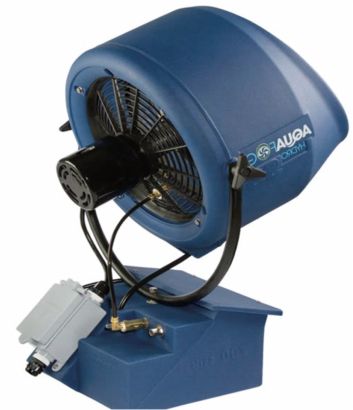

Hydro SS-700 Greenhouse Fogger is engineered to withstand humid conditions as high as 100% relative humidity. Units are constructed of impenetrable components like Name 4 boxes and connections, all 304 stainless steel hardware, UV stabilized polyethylene housing and precision, high strength injection molded polypropylene components.

Compact and versatile Hydro atomizing fans can handle a variety of indoor/outdoor humidification or evaporative cooling applications. The nozzle-free fans can atomize ordinary water supplies into a very fine mist-like-fog. Utilizing high-speed centrifugal force and air flow, these units can propel a misty-fog stream up to 20 feet away


Features

  • 3 gallon per hour fogging capability

  • Consumes extremely low amounts of energy, 1.8 amps or less @ 115V

  • Adjustable angle fogging head

  • No-clog, nozzle-free atomization

  • Adjustable flow output w/ fog particles averaging 40 microns in size

  • 14 foot power cord with grounded three prong plug.

  • 15 feet of ╝" water line tubing with water hose connector

Specification


Select this link to see Dimensions

Fogging Capacity 0-3 Gallons per hour
CFM Rating 1,125 Cubic feet per minute
Energy Consumption 1.5 Amps @ 115V
Noise @ 10 ft. 62 dB(A)
Weight 18.5 lbs
Dimensions 18" Width x 18" Depth x 25" Height
Voltage 110-128 Volts, 60Hz, 1ph
Coverage About 500 sq. ft. for Humidification Applications
  About 300 sq. ft. for Evaporative Cooling Applications


Prices

Model # Description Electricalá Price Buy Now
J03-SS700BT 3 GPH Bench Top fogger 115V-1Ph-60Hz $638 shopping cart
J03-XE36 Humidistat/Solenoid Control 110V-250V-50/60HZ $100
J03-THA-120-DF Thermostat/Solenoid Control 110-250 Volt 50/60Hz $117
J03-CTA120 Cycle Timer / Solenoid 110-250 Volt 50/60Hz $168



Humidistat/Solenoid Control-XE36DF Thermostat/Solenoid Control-THA-120-DF Cycle Timer / Solenoid-CTA-120-DF
XE36-DF THA-120-DF CTA120
Mini 360░ Oscillator-XE-mini-360 Floor Stand Traveling Floor Stand
XE-mini-360 XE-110 XE-100
